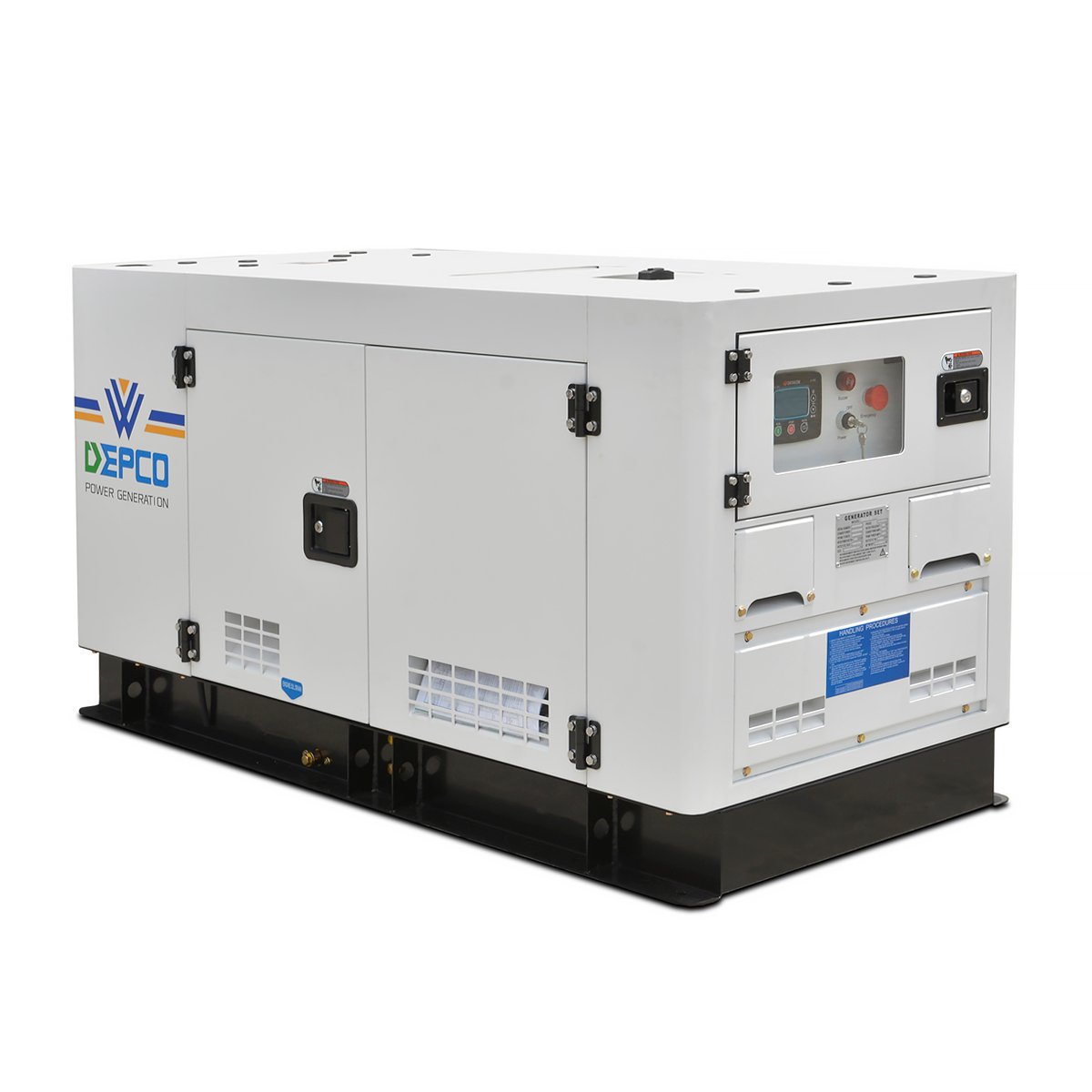

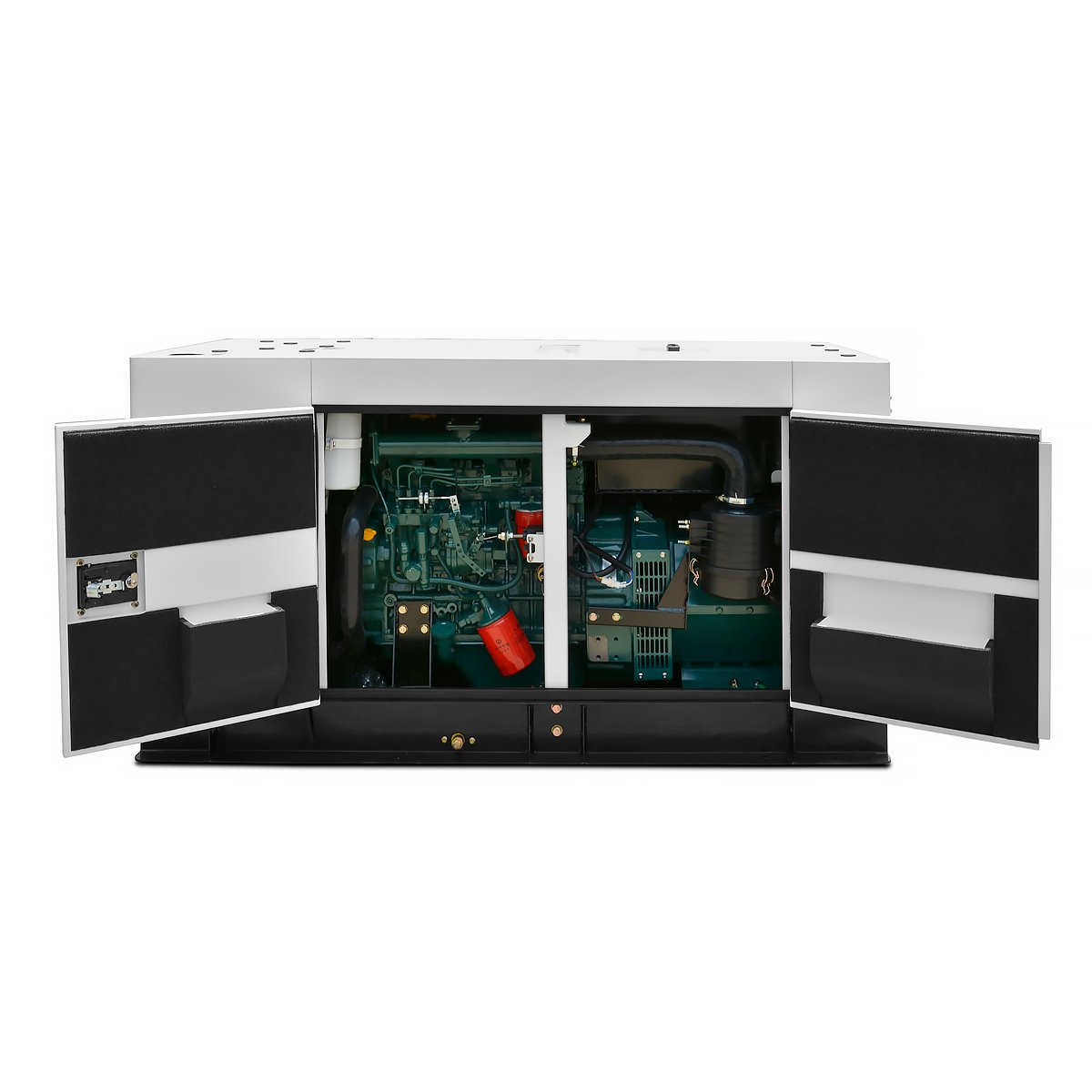

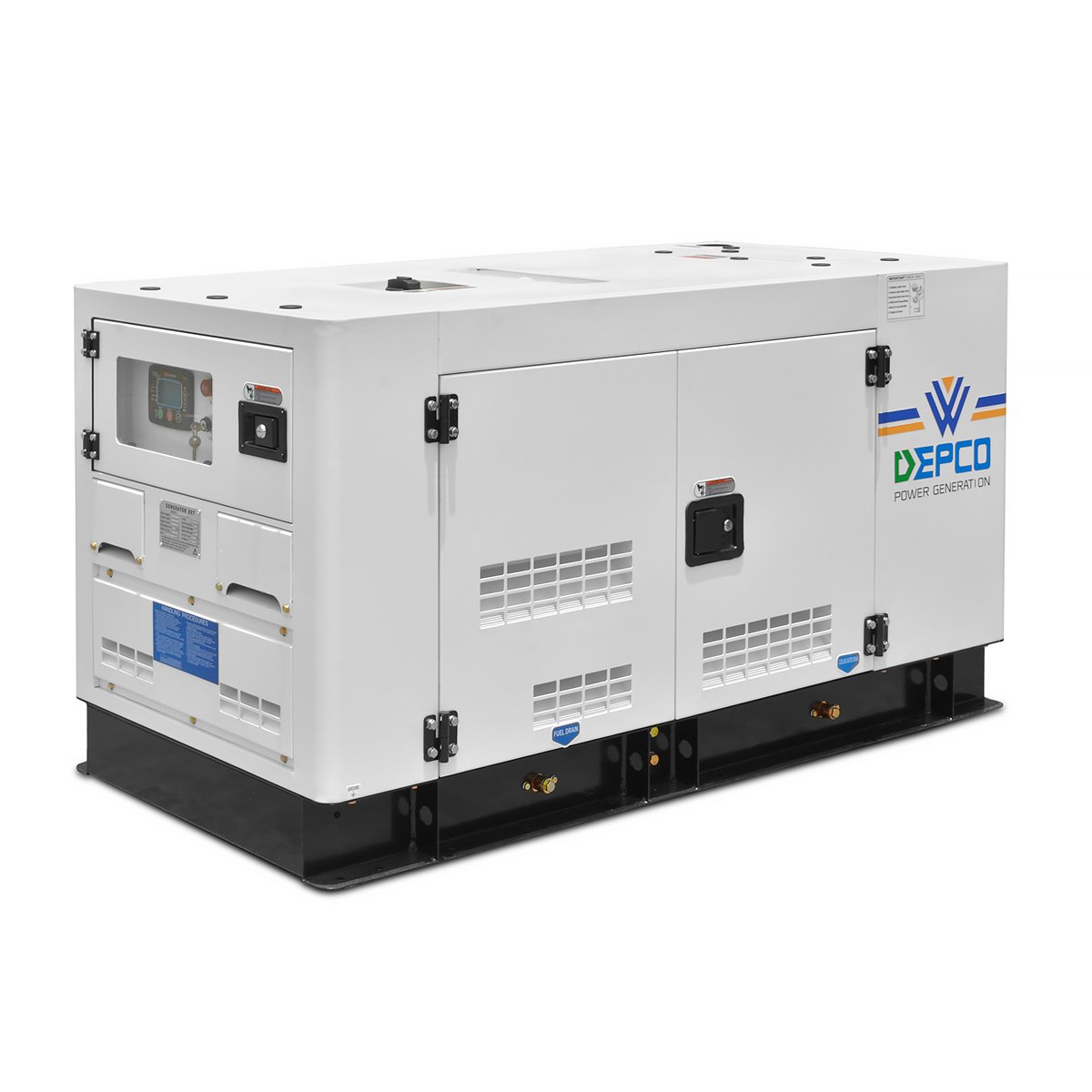

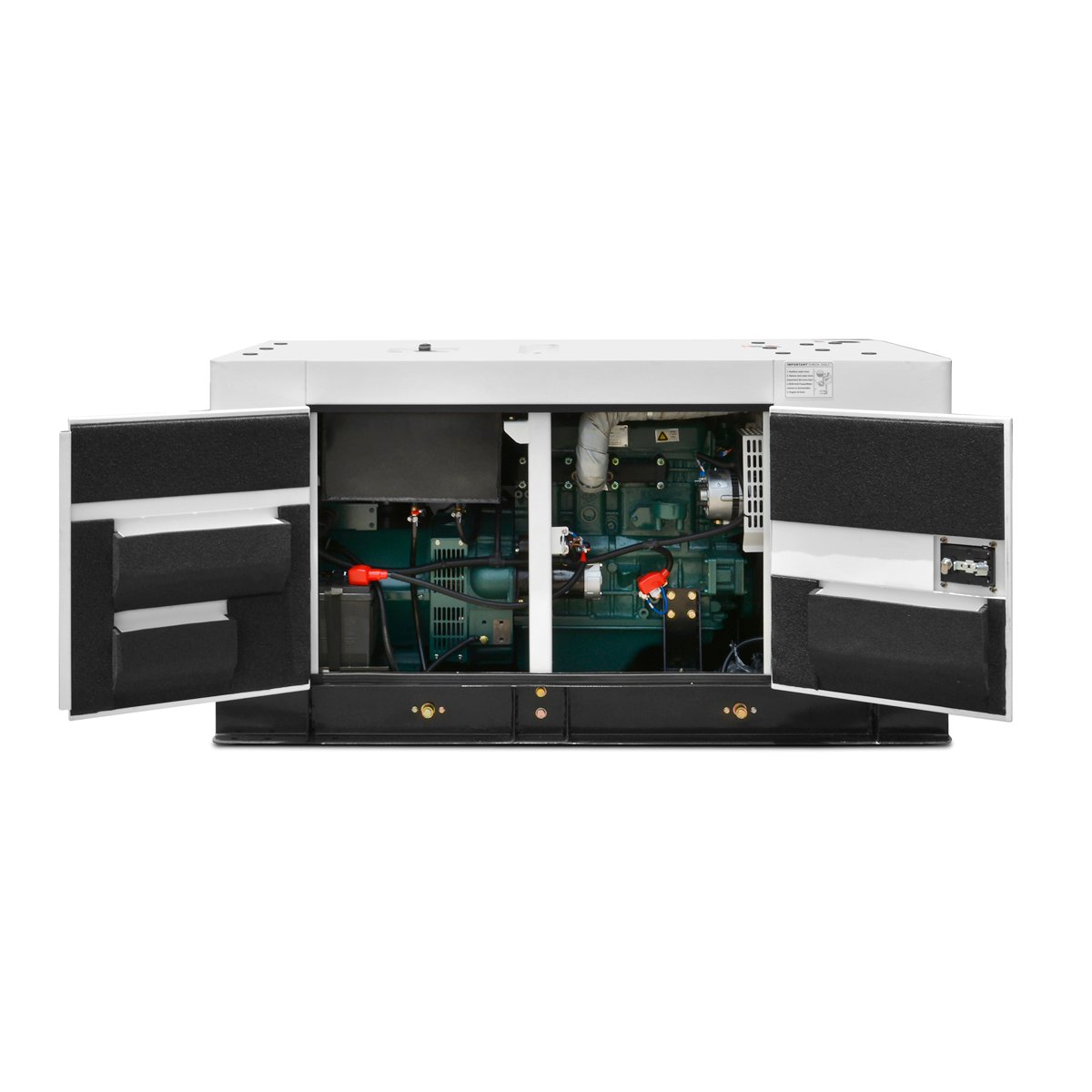

DPK-DK-28

Generating Set Model Output Rating PRIME STANDBY 50 HZ 380-415 V, 3 PH, 1500 RPM 25.0 KVA 27.5 KVA 20.0 KW 22.0 KW Engine Engine Make DEPCO Engine Model DEPCO-495 Governing Type Mechanical Number of Cylinders 4 Cylinder Arrangement In-line Bore and Stroke (mm) 95 x 105 Displacement 3.04 L Aspiration Natural Cycle 4 Stroke Compression Ratio - Cooling System Water-Cooling Frequency & Engine Speed 50 HZ & 1500 RPM PRIME STANDBY Gross Engine Power kWm 25 kWm - Fuel Consumption @ 100% L/hr 7 - Fuel Consumption @ 50% L/hr - - Alternator Data Make DEPCO Model DEPCO-20-3 No. of Bearings 1 Insulation Class H Wires Ingress Protection IP23 Excitation System Shunt Voltage ±1% Dimension & Weight Length mm 1650 Width mm 740 Height mm 860 Weight*kg 660 Fuel Tank Capacity 43 L Control Panel Make DATAKOM Model D100
