PL10S

<table border="1" style="border-collapse: collapse; width: 100.041%; height: 410.32px;"><colgroup><col style="width: 49.9559%;"><col style="width: 50.0462%;"></colgroup> <tbody> <tr style="height: 34.3594px;"> <td style="text-align: center; height: 34.3594px; background-color: rgb(217, 220, 221);">MODEL</td> <td style="height: 34.3594px; background-color: rgb(217, 220, 221); text-align: center;">PL10S</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Effective intensity (cd)</td> <th style="height: 22.4062px;"></th> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Vertical beam (degree)</td> <td style="height: 22.4062px; text-align: center;">>.5</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Horizontal spread (degree)</td> <th style="height: 22.4062px; text-align: center;">360</th> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Light source</td> <td style="height: 22.4062px; text-align: center;">Philips LEDs</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">ED lifespan (hours)</td> <td style="height: 22.4062px; text-align: center;">Red</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Flash pattern</td> <td style="height: 22.4062px; text-align: center;">Steady burning / Flashing (20FPM as default</td> </tr> <tr style="height: 34.3594px;"> <td style="height: 34.3594px; text-align: center; background-color: rgb(217, 220, 221);">POWER SUPPLY </td> <td style="height: 34.3594px; background-color: rgb(217, 220, 221);"></td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Input voltage (VAC)</td> <td style="height: 22.4062px; text-align: center;">85-245</td> </tr> <tr style="height: 34.3594px;"> <td style="height: 34.3594px; text-align: center;">Power consumption (W)</td> <td style="height: 34.3594px; text-align: center;">4</td> </tr> <tr style="height: 38.3672px;"> <td style="height: 38.3672px; text-align: center; background-color: rgb(217, 220, 221);">MECHANICAL STRUCTURE</td> <td style="height: 38.3672px; background-color: rgb(217, 220, 221);"></td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Mounting</td> <td style="height: 22.4062px; text-align: center;">G3/4’’ threaded bottom entry</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Net weight (kg)</td> <td style="height: 22.4062px; text-align: center;">159 x 245</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Dimensions (W x H) (mm)</td> <td style="height: 22.4062px; text-align: center;">IP65</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">Protection</td> <td style="height: 22.4062px; text-align: center;">-40 ~ 70</td> </tr> <tr style="height: 22.4062px;"> <td style="height: 22.4062px; text-align: center;">OperatioOperation humidity (%)n temperature (°C) </td> <td style="height: 22.4062px; text-align: center;">0-95 RH non-condensing</td> </tr> </tbody> </table>

PL10S

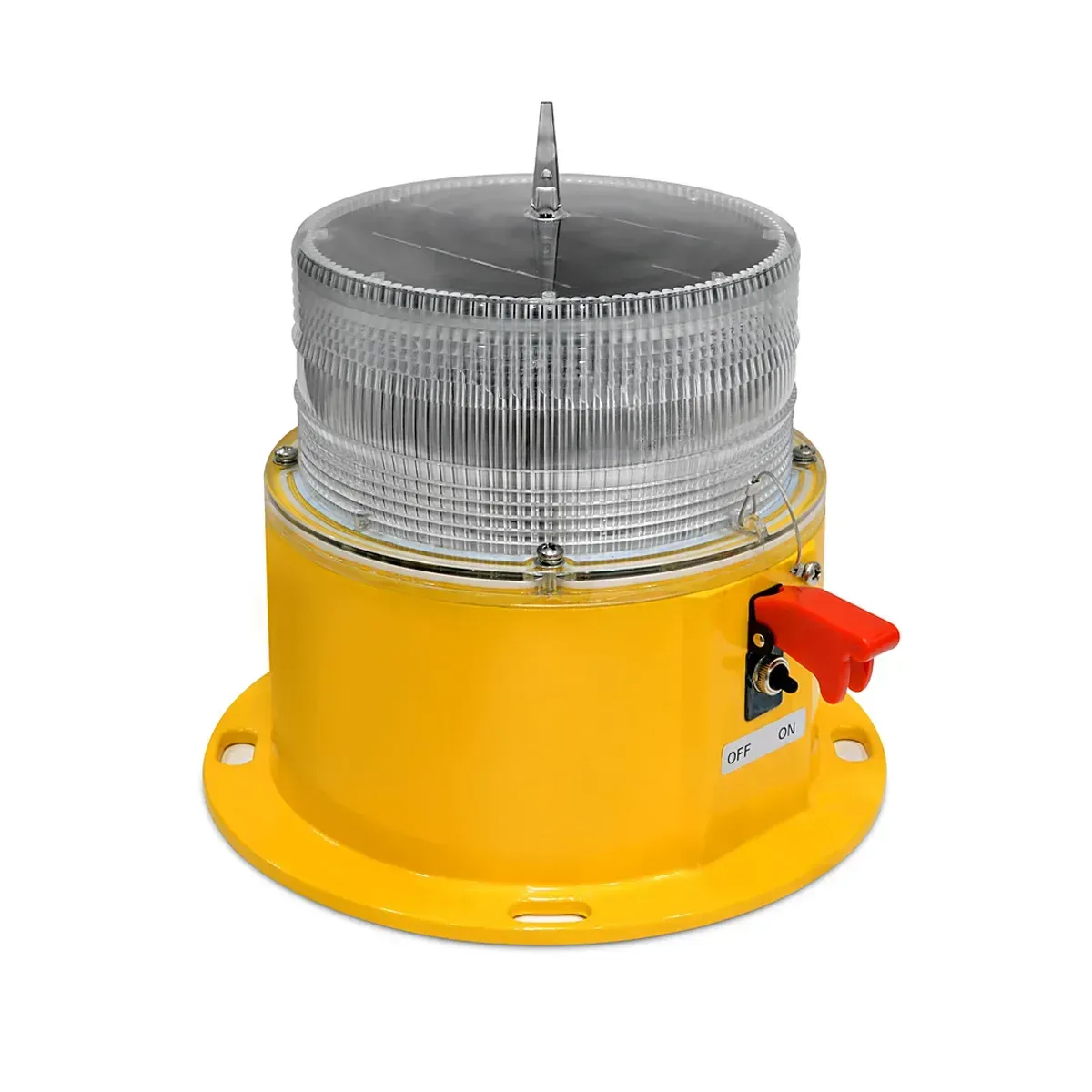

PL10S series is a self-contained LED low intensity solar obstruction light. The compact solar aviation light comes with 1.8W solar panel and 3.6V/8AH NiMH battery. The solar panel on top of the light absorbs sunlight and charges battery at day. NiMH battery inside provides a reliable power source to the light at night. UV-stabilized polycarbonate lens is the photometric part of amplifying light intensity and distributing light beams. Robust aluminum body with powder coating provides excellent protection against harsh environments. With built-in photocell, PL10S solar light automatically illuminates at night. Incorporated intelligent programs, this solar light is capable of working up to 35 days during rainy and cloudy days. 8 pcs of ultra-bright Philips LEDs, reliable light source ensures long lifespan Self-contained solar panel and battery system Integrated MPPT (Maximized Power Point Tracking) for maximizing sunlight collection Integrated SBM (Smart Battery Management) for saving energy to extend autonomy Fresnel optical lens provides excellent light distribution Bird spike against birds landing and nesting High-grade NiMH battery provides long lifetime Autonomy up to 35 days once fully charged during insufficient sunlight days Protective vent for expelling battery gas and reducing condensation Built-in photocell for automatically turning on and off from dusk to dawn Automatically off if continue working 18 hours IP67 ON-OFF switch for protecting the battery from overdischarging Stainless steel safety rope protects light head from fall-off during maintenance GE polycarbonate dome, UV-stabilized Aluminum base with powder painted, corrosion-resistant IP67 waterproof protection, silicon gasket enhanced Excellent shock and vibration resistant

Choose an Option

PL10S

Select Quantity

PL10S

MODEL	PL10S
Effective intensity (cd)
Vertical beam (degree)	>.5
Horizontal spread (degree)	360
Light source	Philips LEDs
ED lifespan (hours)	Red
Flash pattern	Steady burning / Flashing (20FPM as default
POWER SUPPLY
Input voltage (VAC)	85-245
Power consumption (W)	4
MECHANICAL STRUCTURE
Mounting	G3/4’’ threaded bottom entry
Net weight (kg)	159 x 245
Dimensions (W x H) (mm)	IP65
Protection	-40 ~ 70
OperatioOperation humidity (%)n temperature (°C)	0-95 RH non-condensing

PL10S

PL10S

Choose an Option

Select Quantity

Overview

Product Specifications

Kindly contact us to get technical details for a product tailored for your project requirements
