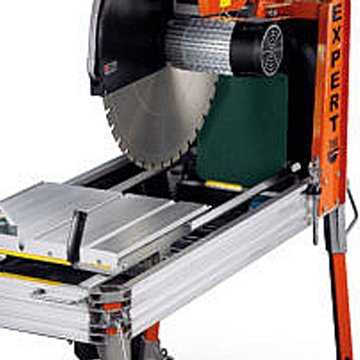

Expert 700

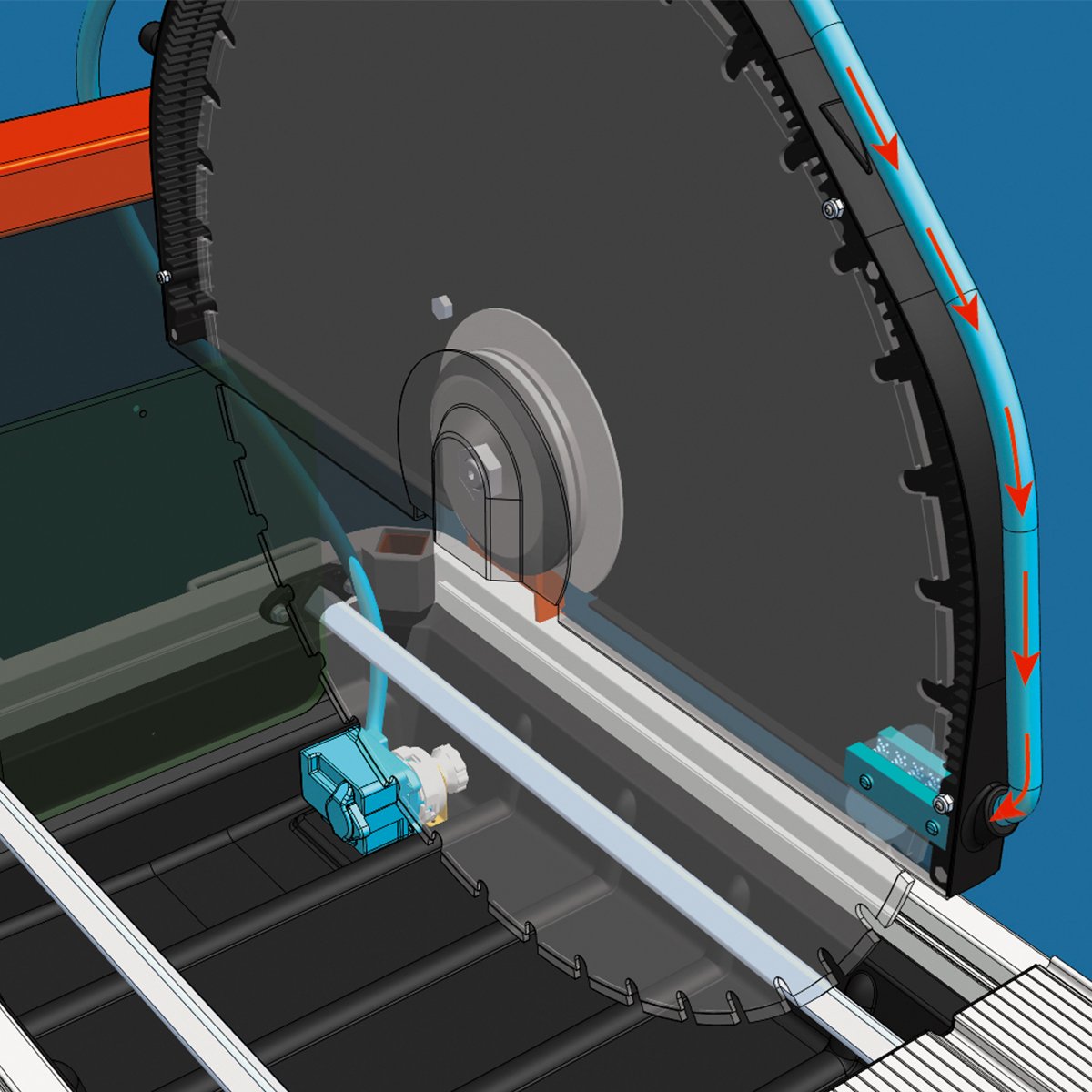

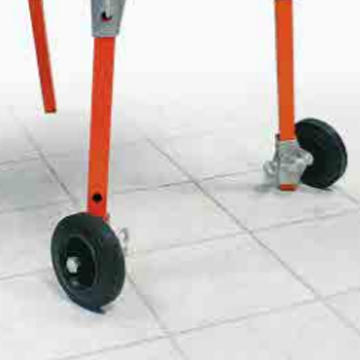

<p>EXPERT is a masonry saw ideal for the building sector.Innovative design with high tech solutions, very precise, compact, light and strong, it's suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector. <strong>TT Power </strong>The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws.<strong> AxT</strong>(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality<strong> Spray system </strong>Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard.<strong> Fast Leg </strong>The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging.<strong> W Dec </strong>Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water.<strong> Adjustable head </strong>Adjustament system of the cutting height with a hand wheel and relevant locking lever. Possibility to make cuts with 2 RUNS.<strong> Structure </strong>Aluminium draw-plate to get the maximun of rigidity and lightness at the same time. It has four handles for the carriage and movement.<strong> Handle on the working table </strong>To get the maximum safe to the operator.<strong> Working table </strong>The working table is very strong and steady. It slides on 2 steel square rails with 6 wheels; 4 over and 2 under. Every wheel has 2 ball bearings for a total of 12.<strong> Disk brake security (optional) </strong>A braking system for three-phased motors, which allow a very fast complete stop of the disk after the saw switch-off.</p><p><strong>Accessories:</strong></p><p><strong>Included:&nbsp;</strong><br>Wheels kit<br><strong>Optional:&nbsp;</strong><br>Sound rotation security<strong> </strong>45° Angle cutting accessory</p>

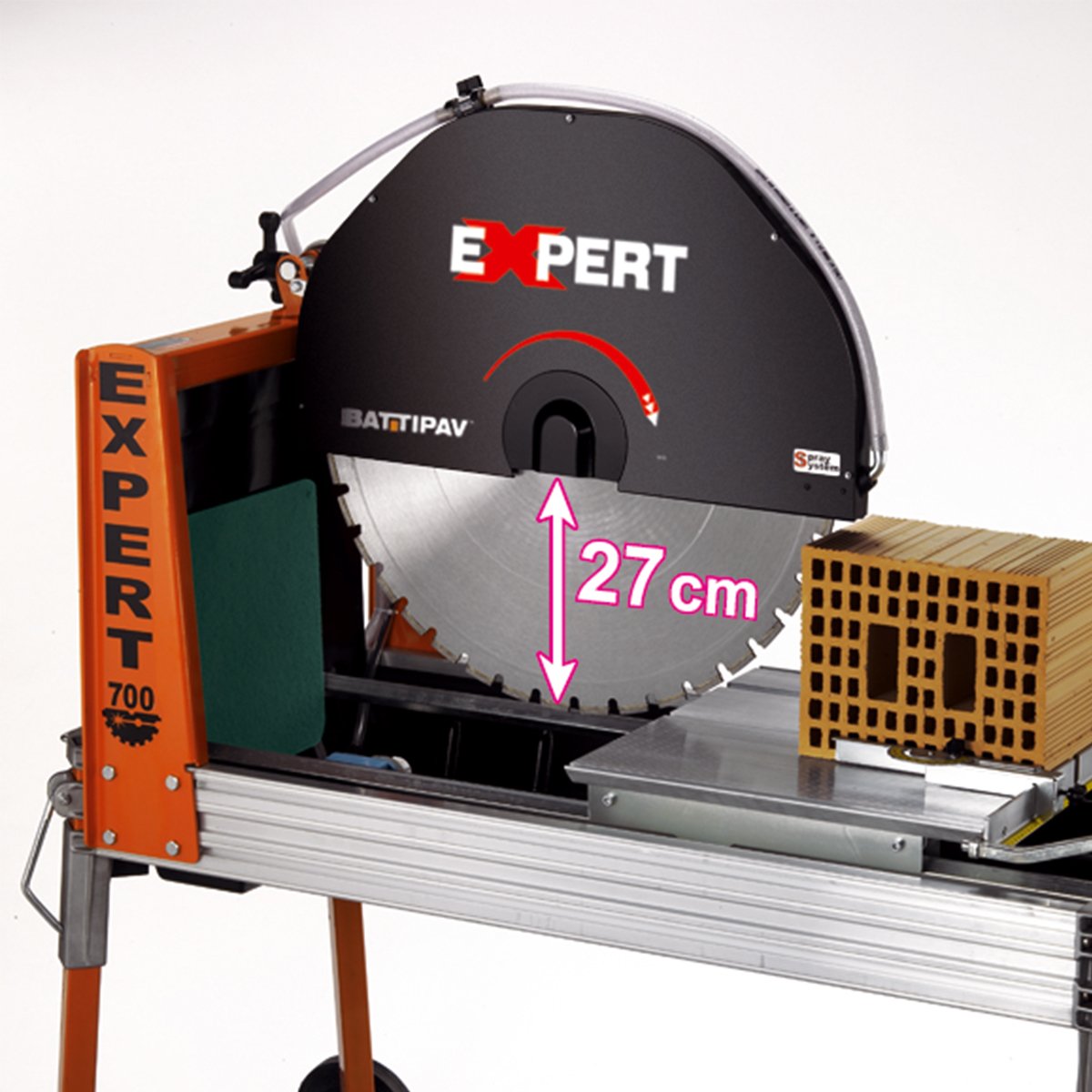

<table border="0" width="788" cellspacing="0" cellpadding="0"><colgroup> <col> <col span="3"> </colgroup> <thead> <tr> <th style="height: 19px; width: 301px;" height="19"><span style="font-size: 18px;">MODEL</span></th> <th style="width: 175px;"><span style="font-size: 18px;">Expert 700</span></th> </tr> </thead> <tbody> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Blade (Ø mm)<span style="color: red;">*</span></span></th> <td><span style="font-size: 18px;">700 / 650</span></td> </tr> <tr> <th style="height: 37px;" height="37"><span style="font-size: 18px;">Max. straight cutting length (mm)</span></th> <td style="width: 175px;"><span style="font-size: 18px;">Blade Ø700 = 550Blade Ø650 = 580</span></td> </tr> <tr> <th style="height: 37px;" height="37"><span style="font-size: 18px;">Max. cutting depth for straight cut (mm)</span></th> <td style="width: 175px;"><span style="font-size: 18px;">Blade Ø700 = 270Blade Ø650 = 240</span></td> </tr> <tr> <th style="height: 37px;" height="37"><span style="font-size: 18px;">Max. size tile for diagonal cutting (mm)</span></th> <td style="width: 175px;"><span style="font-size: 18px;">Blade Ø700 = 389 x 389Blade Ø650 = 410 x 410</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Max. cutting depth with 2 runs (mm)</span></th> <td><span style="font-size: 18px;">340</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Working table dimension (L x W) (mm)</span></th> <td><span style="font-size: 18px;">515 x 520</span></td> </tr> <tr> <th style="height: 37px;" height="37"><span style="font-size: 18px;">Tool hole (Ø mm)</span></th> <td style="width: 175px;"><span style="font-size: 18px;">Blade Ø700 = 25.4Blade Ø650 = 25.4</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Rotation speed (rpm)</span></th> <td><span style="font-size: 18px;">1400</span></td> </tr> <tr> <th style="height: 37px;" height="37"><span style="font-size: 18px;">Motor type</span></th> <td style="width: 175px;"><span style="font-size: 18px;">1 phase - 230V ~ 50 Hz3 phase - 400V ~ 50 Hz</span></td> </tr> <tr> <th style="height: 37px;" height="37"><span style="font-size: 18px;">Motor power (HP / kW, A)</span></th> <td style="width: 175px;"><span style="font-size: 18px;">1 phase - 4.5 / 3.5, 8.03 phase - 5.5 / 4.0, 8.0</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Water recycling pump type</span></th> <td><span style="font-size: 18px;">S3</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Water tank capacity (Min. / Max.) (ltrs.)</span></th> <td><span style="font-size: 18px;">21 / 32</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Thermic protection (°C)</span></th> <td><span style="font-size: 18px;">160</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Amperometrical protection (A)</span></th> <td><span style="font-size: 18px;">10 - 16</span></td> </tr> <tr> <th style="height: 19px;" height="19"><span style="font-size: 18px;">Net weight (kg)</span></th> <td><span style="font-size: 18px;">100.5</span></td> </tr> </tbody> </table>
