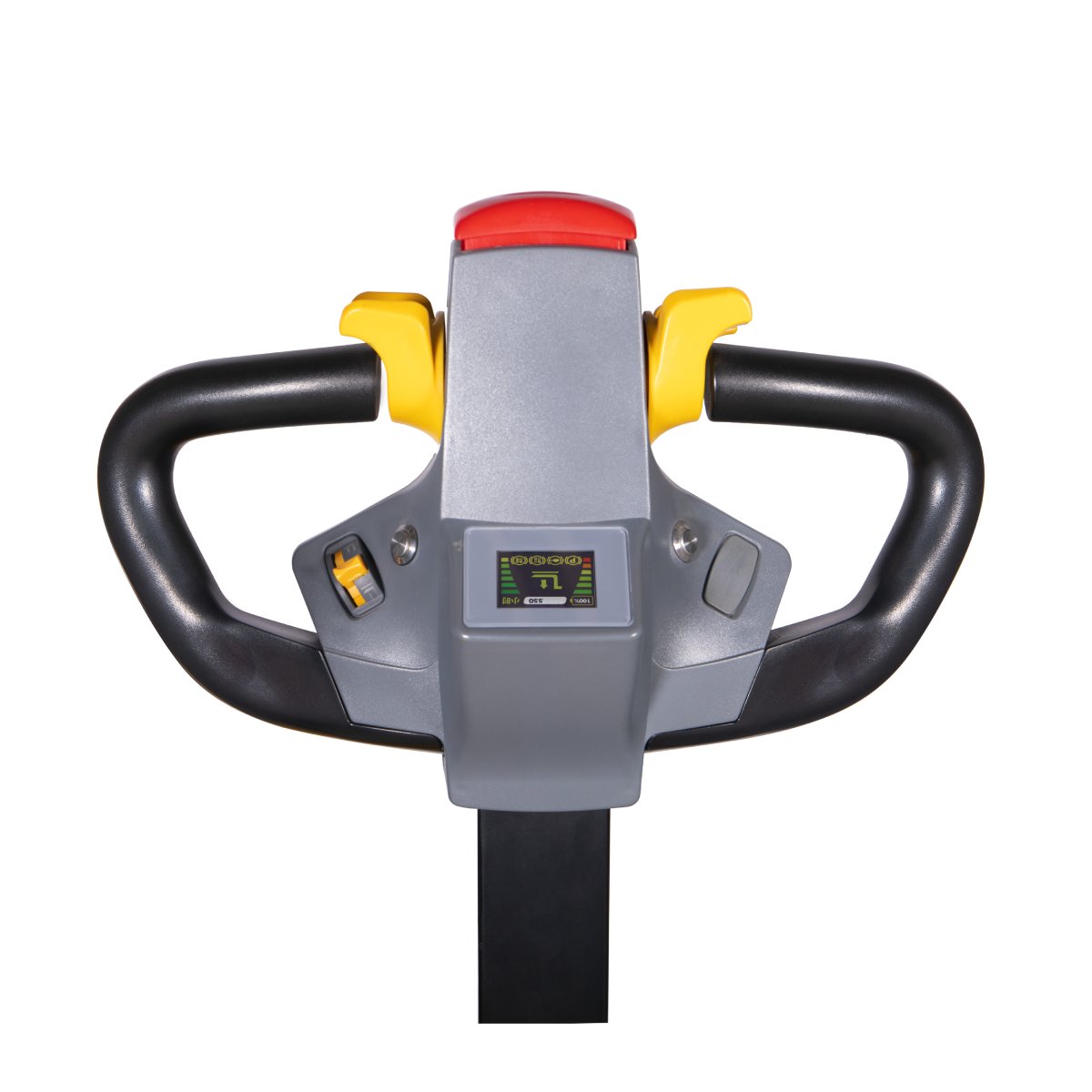

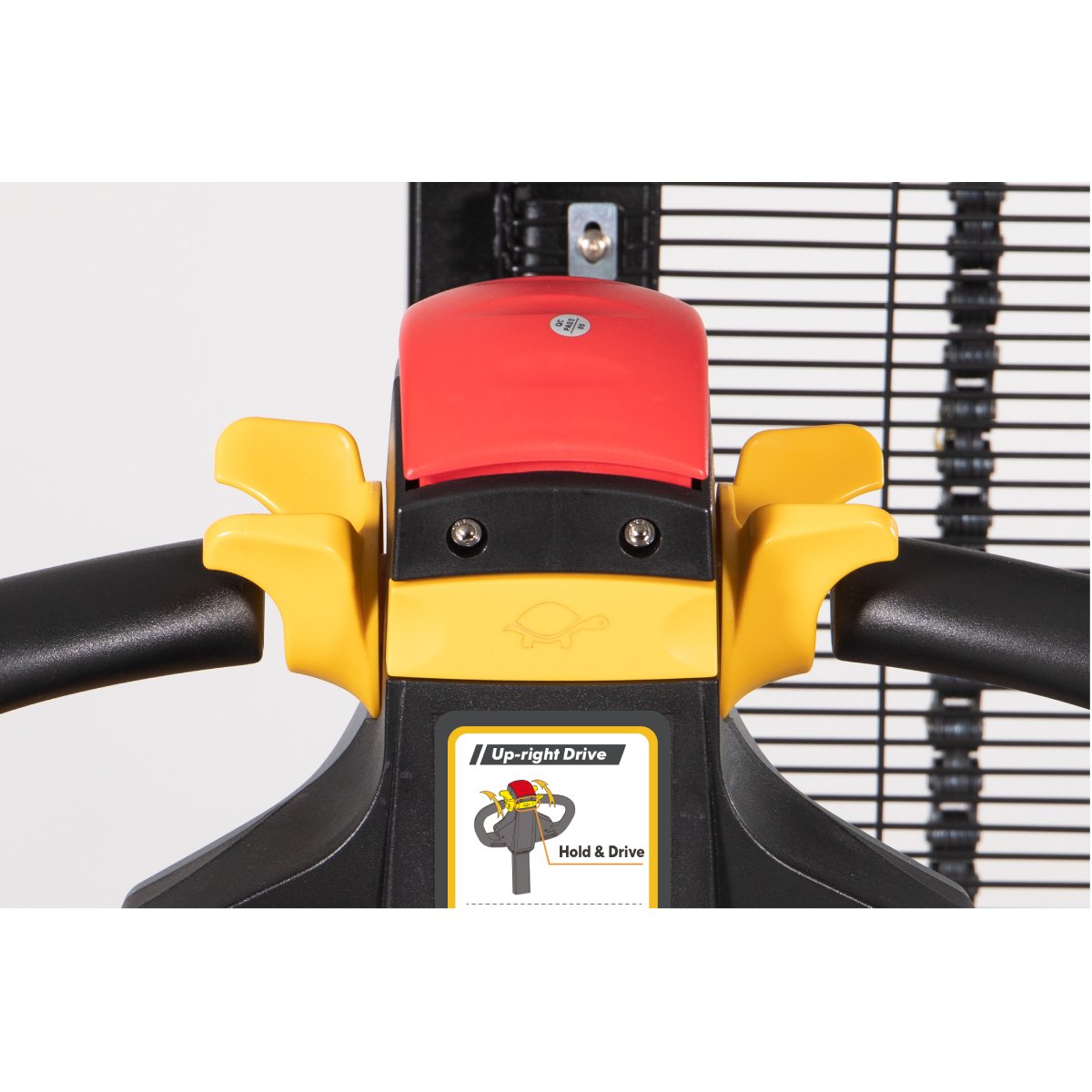

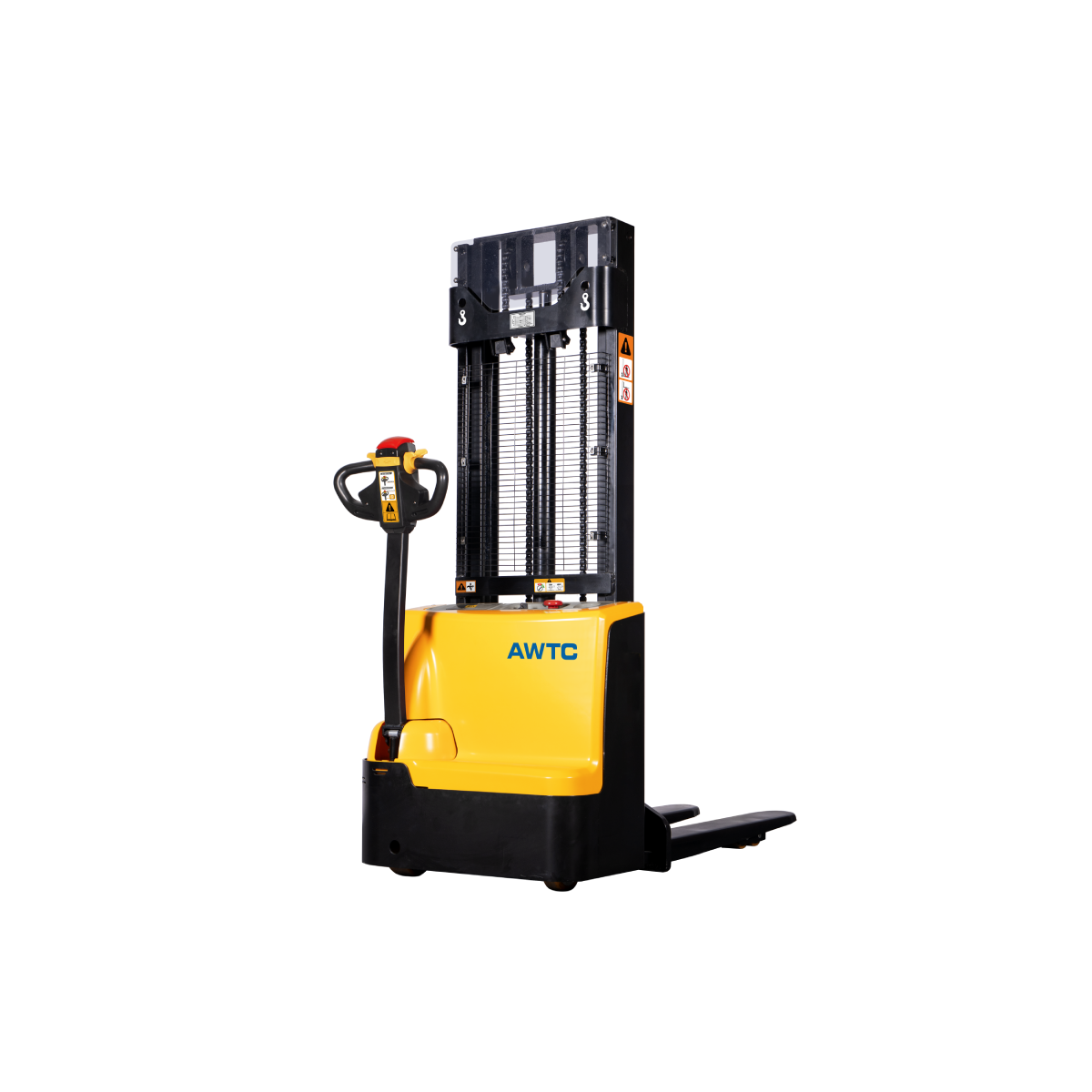

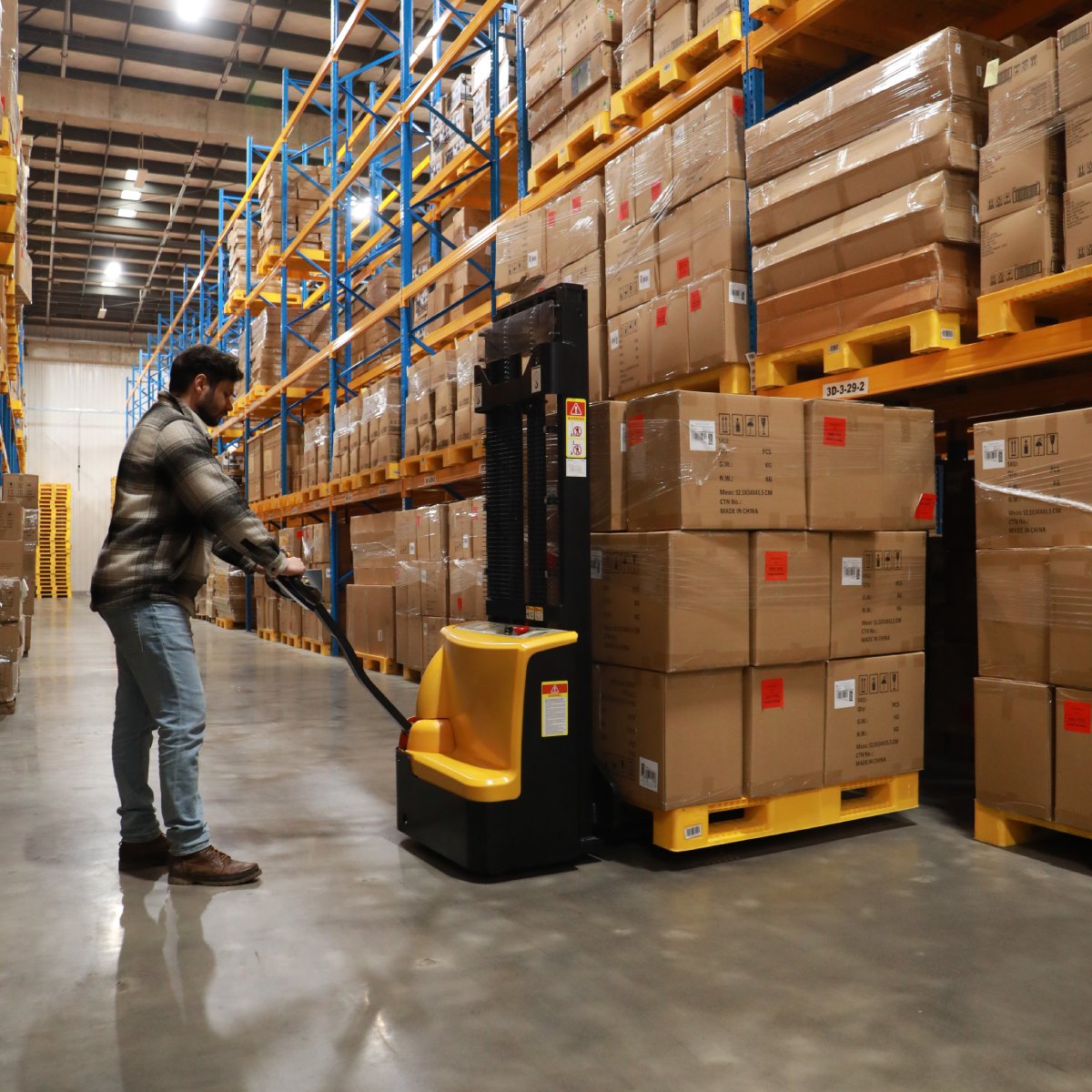

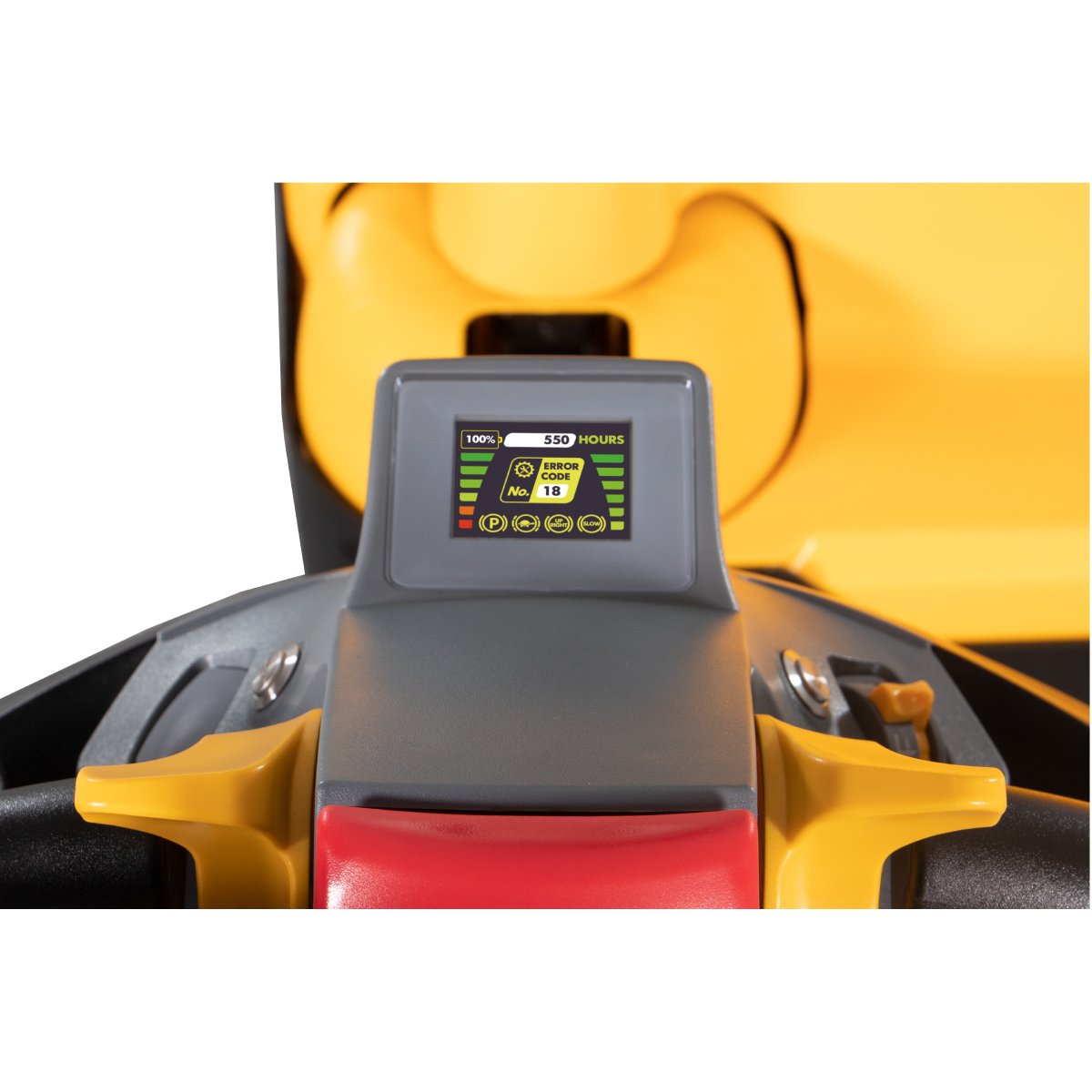

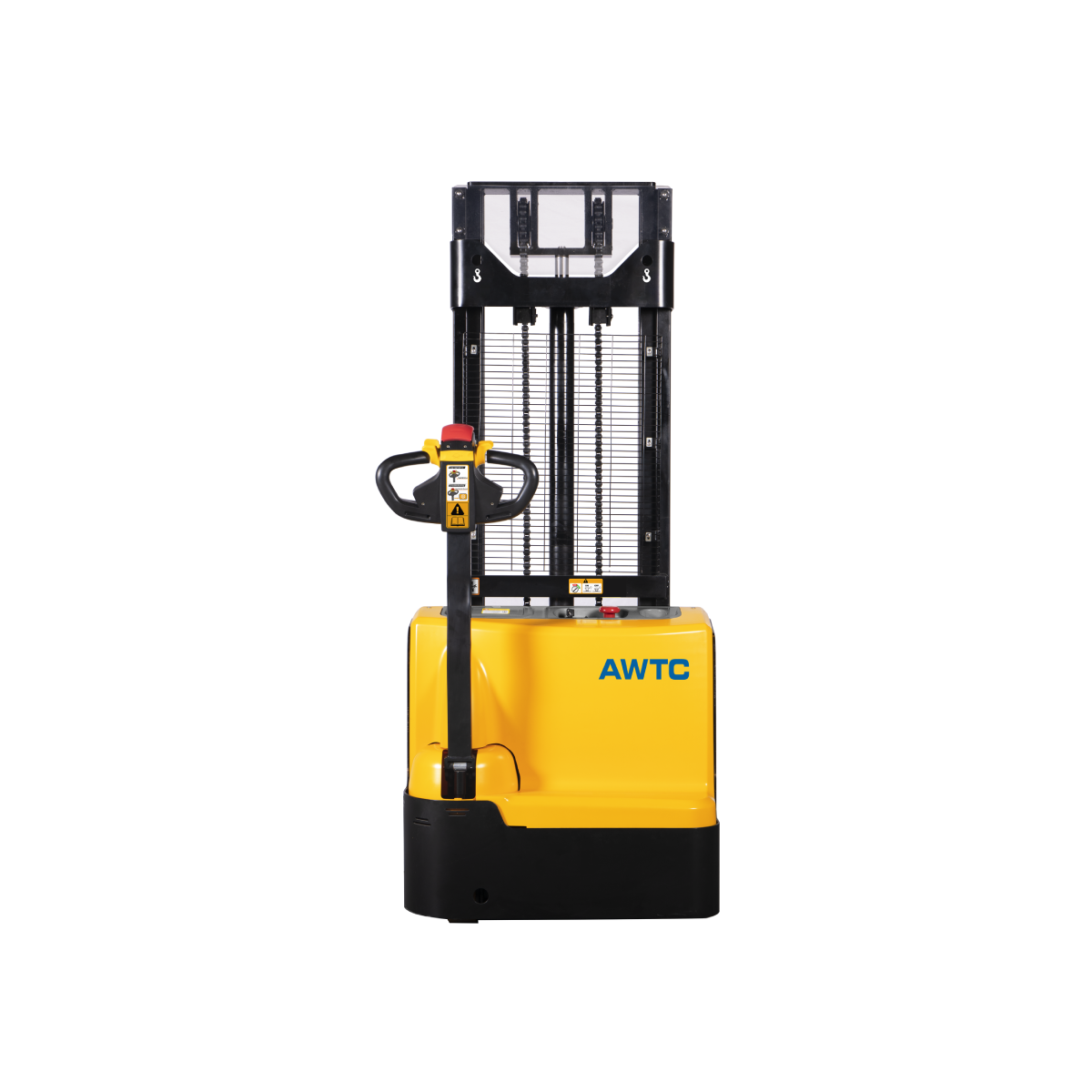

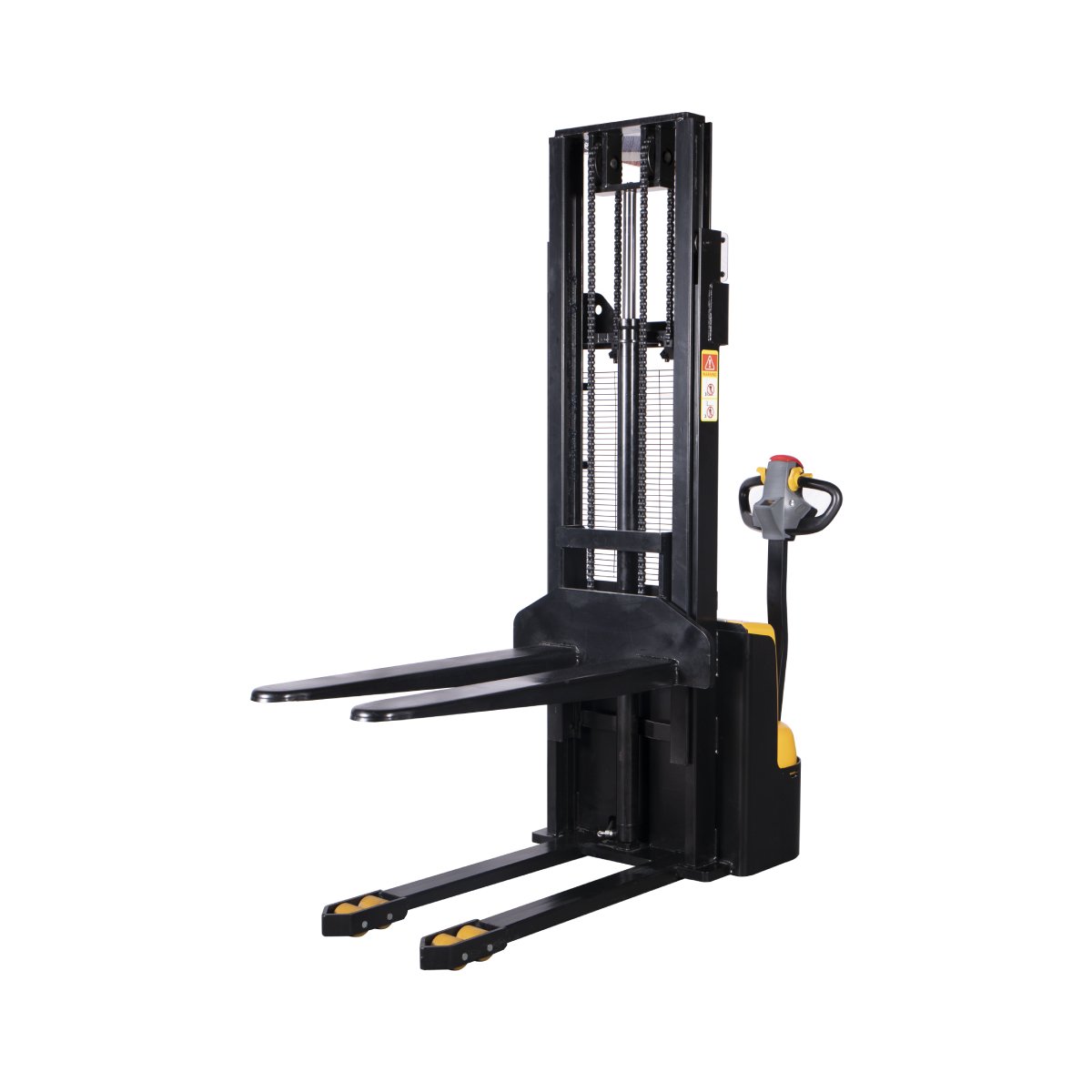

<p>The AWTC WS15H Electric Pedestrian Stacker is engineered for businesses that demand reliable, high-performance pallet handling in compact spaces. With a 1,500 kg load capacity and lift heights ranging from 2,000 mm to 3500 mm, this fully electric stacker is ideal for warehouse operations, retail logistics, and manufacturing environments.</p><p>Designed with intelligent variable speed control, the WS15H ensures smooth and precise lifting and lowering. This minimizes mechanical shock and reduces operator fatigue-perfect for handling fragile goods or operating in noise-sensitive environments. The proportional lifting system offers unmatched control compared to traditional fixed-speed models, enhancing accuracy and overall productivity.</p><p>The WS15H features AWTC's advanced multifunctional intelligent tiller handle, integrating fault diagnosis directly on the control display. This not only reduces downtime and maintenance costs but also allows any operator to quickly assess and resolve issues with minimal training.</p><p><strong>Key highlights include:</strong></p><p>Powerful 24V system with 71Ah or 89Ah maintenance-free batteries, or optional LiFePO4 lithium battery with rapid 2-4 hour charging.</p><p>Robust build with high-strength steel forks and mast, double-chain design, and reinforced base for maximum durability and stability.</p><p>Enhanced safety features such as automatic speed reduction above 500mm lift height, emergency reverse switch, explosion-proof hydraulic valve, and 30mm low ground clearance for foot protection.</p><p>Exceptional maneuverability with a tight turning radius, ergonomic tiller arm, and vertical "turtle mode" operation in confined areas.</p><p>With AWTC's WS15H, you gain more than just an electric stacker-you invest in efficiency, safety, and long-term performance, all in a compact, easy-to-operate package. It's the perfect upgrade from manual or semi-electric stackers for growing operations seeking intelligent handling solutions.</p><p><img src="https://api.alwisamllc.com/uploads/Whats_App_Image_2025_10_31_at_14_49_03_6ec3d83ee2.jpeg" alt="WhatsApp Image 2025-10-31 at 14.49.03.jpeg"> </p><h3> </h3>
<table> <tbody> <tr> <td>Section</td> <td>Spec No.</td> <td>Description</td> <td>Reference</td> <td>Unit</td> <td>Specs</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left;" rowspan="6" scope="row">Drive</th> <td>1.1.</td> <td>Drive</td> <td></td> <td>-</td> <td>Battery</td> </tr> <tr> <td>1.2.</td> <td>Operator Type</td> <td></td> <td>-</td> <td>Pedestrian</td> </tr> <tr> <td>1.3.</td> <td>Load capacity / Rated Load</td> <td>Q</td> <td>kg</td> <td>1500</td> </tr> <tr> <td>1.4.</td> <td>Load centre distance</td> <td>c</td> <td>mm</td> <td>600</td> </tr> <tr> <td>1.5.</td> <td>Load distance(center of drive axle to fork)</td> <td>x</td> <td>mm</td> <td>800</td> </tr> <tr> <td>1.6.</td> <td>Wheelbase</td> <td>y</td> <td>mm</td> <td>1210</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left;" rowspan="5" scope="row">Weight</th> <td>2.1.</td> <td>Service weight (w/o battery)</td> <td></td> <td>kg</td> <td>575</td> </tr> <tr> <td>2.2.</td> <td>With 71Ah battery</td> <td></td> <td>kg</td> <td>623</td> </tr> <tr> <td>2.3.</td> <td>With 89Ah battery</td> <td></td> <td>kg</td> <td>628</td> </tr> <tr> <td>2.4.</td> <td>Axle load, laden (front/rear)</td> <td></td> <td>kg</td> <td>618/1441</td> </tr> <tr> <td>2.5.</td> <td>Axle load, unladen (front/rear)</td> <td></td> <td>kg</td> <td>419/140</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left;" rowspan="7" scope="row">Tyres/Chassis</th> <td>3.1.</td> <td>Wheel type</td> <td></td> <td>-</td> <td>Polyurethane</td> </tr> <tr> <td>3.2.</td> <td>Wheel size (front)</td> <td>Ø x width</td> <td>mm</td> <td>Ø210×70</td> </tr> <tr> <td>3.3.</td> <td>Wheel size (rear)</td> <td>Ø x width</td> <td>mm</td> <td>Ø80×70</td> </tr> <tr> <td>3.4.</td> <td>Additional wheels</td> <td>Ø x width</td> <td>mm</td> <td>Ø115×55</td> </tr> <tr> <td>3.5.</td> <td>Wheels, number front/rear(x = driven wheels)</td> <td></td> <td>-</td> <td>1x+1/4</td> </tr> <tr> <td>3.6.</td> <td>Tread (front)</td> <td>b10</td> <td>mm</td> <td>550</td> </tr> <tr> <td>3.7.</td> <td>Tread (rear)</td> <td>b11</td> <td>mm</td> <td>390</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left;" rowspan="14" scope="row">Dimensions</th> <td>4.1.</td> <td>Lowered mast height</td> <td>h1</td> <td>mm</td> <td>2230</td> </tr> <tr> <td>4.2.</td> <td>Max. Lifting height</td> <td>h3</td> <td>mm</td> <td>3500</td> </tr> <tr> <td>4.3.</td> <td>Extended mast height</td> <td>h4</td> <td>mm</td> <td>3935</td> </tr> <tr> <td>4.4.</td> <td>Tiller height in driving position(min/max)</td> <td>h14</td> <td>mm</td> <td>910/1270</td> </tr> <tr> <td>4.5.</td> <td>Height, lowered</td> <td>h13</td> <td>mm</td> <td>85±2</td> </tr> <tr> <td>4.6.</td> <td>Overall length</td> <td>l1</td> <td>mm</td> <td>1730</td> </tr> <tr> <td>4.7.</td> <td>Length to fork face</td> <td>l2</td> <td>mm</td> <td>580</td> </tr> <tr> <td>4.8.</td> <td>Overall width</td> <td>b1</td> <td>mm</td> <td>820</td> </tr> <tr> <td>4.9.</td> <td>Fork dimensions</td> <td>s/e/l</td> <td>mm</td> <td>70×160×1150</td> </tr> <tr> <td>4.10.</td> <td>Width over forks</td> <td>b5</td> <td>mm</td> <td>560</td> </tr> <tr> <td>4.11.</td> <td>Ground clearance</td> <td>m2</td> <td>mm</td> <td>30</td> </tr> <tr> <td>4.12.1.</td> <td>Aisle width (1000×1200) crossways</td> <td>Ast</td> <td>mm</td> <td>2268</td> </tr> <tr> <td>4.12.2.</td> <td>Aisle width (800×1200) lengthways</td> <td>Ast</td> <td>mm</td> <td>2194</td> </tr> <tr> <td>4.13.</td> <td>Turning radius</td> <td>Wa</td> <td>mm</td> <td>1425</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left;" rowspan="7" scope="row">Performance</th> <td>5.1.</td> <td>Travel speed (load/no load)</td> <td></td> <td>km/h</td> <td>4 / 4.5</td> </tr> <tr> <td>5.2.1.</td> <td>Lift speed (no load)</td> <td></td> <td>mm/s</td> <td>0-190</td> </tr> <tr> <td>5.2.2.</td> <td>Lift speed (with load)</td> <td></td> <td>mm/s</td> <td>0-102</td> </tr> <tr> <td>5.3.1.</td> <td>Lowering speed (no load)</td> <td></td> <td>mm/s</td> <td>20-200</td> </tr> <tr> <td>5.3.2.</td> <td>Lowering speed (with load)</td> <td></td> <td>mm/s</td> <td>30-135</td> </tr> <tr> <td>5.4.</td> <td>Max. gradeability (load/no load)</td> <td></td> <td>%</td> <td>5 / 10</td> </tr> <tr> <td>5.5.</td> <td>Brake type</td> <td></td> <td>-</td> <td>Electromagnetic</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left;" rowspan="5" scope="row">Electric Engine</th> <td>6.1.</td> <td>Drive motor rating (S2 60min)</td> <td>kW</td> <td>0.75</td> </tr> <tr> <td>6.2.</td> <td>Lift motor rating (S3 15%)</td> <td></td> <td>kW</td> <td>2.5</td> </tr> <tr> <td>6.3.</td> <td>Battery voltage/nominal capacity (K5)</td> <td></td> <td>V/Ah</td> <td>12/71 x2 or 12/89 x2</td> </tr> <tr> <td>6.4.</td> <td>Battery weight ±5%</td> <td></td> <td>kg</td> <td>23.2 x2 or 25.8 x2</td> </tr> <tr> <td>6.5.</td> <td>Energy consumption according to EN 16796</td> <td></td> <td>kWh</td> <td>0.42</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left;" rowspan="2" scope="row">Other</th> <td>7.1.</td> <td>Drive control type</td> <td>-</td> <td>DC seed control</td> </tr> <tr> <td>7.1.</td> <td>Sound level at driver's ear according to EN 12053</td> <td></td> <td>dB(A)</td> <td><75</td> </tr> </tbody> </table>
