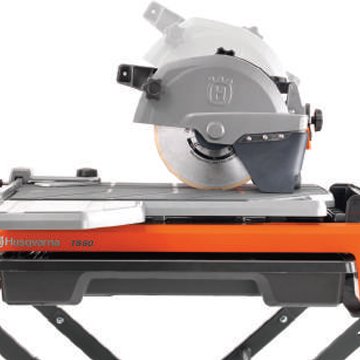

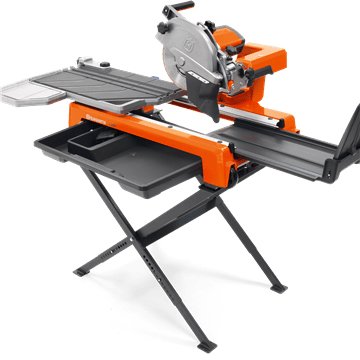

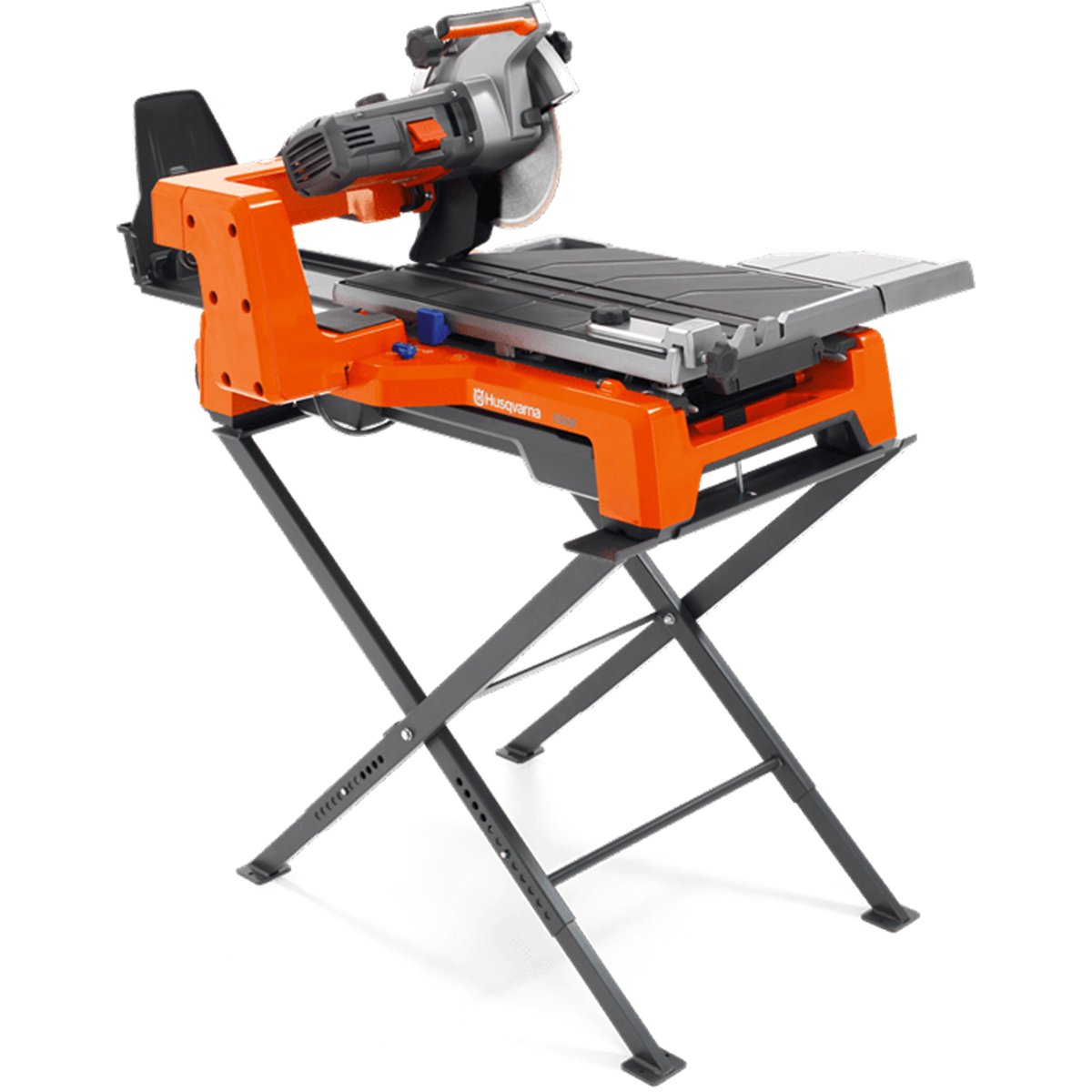

TS 60

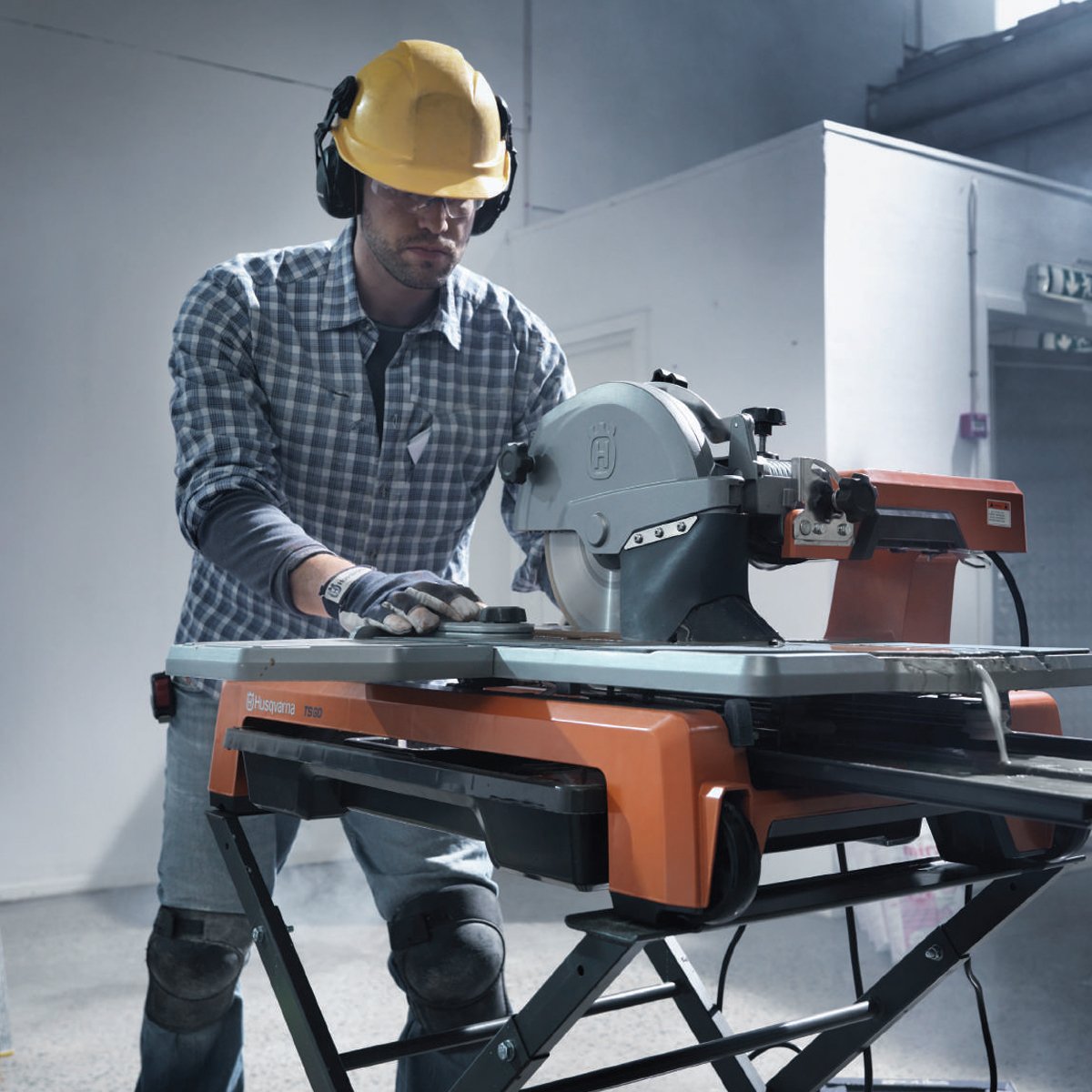

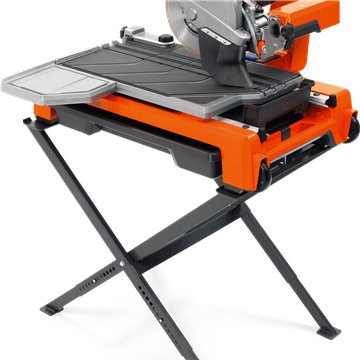

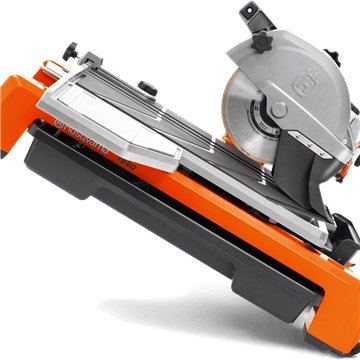

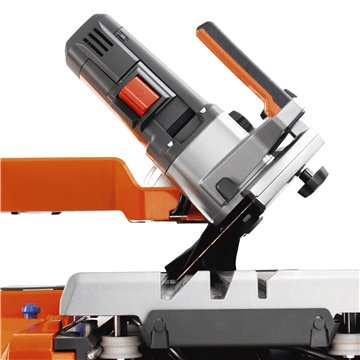

TS 60 is an efficient universal masonry saw with high cutting capacity for all kinds of bricks and building blocks. With this table saw you get a maximum cutting depth of 100 mm in one pass or up to 150 mm by step cutting. You can easily plunge or bevel cut at 45 degrees for maximum versatility. The robust single-piece frame with integrated conveyor rails gives great rigidity and provides longer product life. Clean work area The Jet Stream Water Containment System keeps water and slurry in the cart trench, making it ideal for cutting indoors. Easy transport The low weight, foldable legs and stable wheels facilitate transportation. Flexible cutting method Switches between plunge cuts and MITRE cuts with ease. Ideal for long cutting The maximum cutting length of 700 mm and the large cutting table allows you to cut 50x50 cm tiles diagonally. Jet Stream Water Containment System Keeps water and slurry in the cart trench, making it ideal for cutting indoors. Adjustable cutting head Enables bevel cuts between 22.5 and 45 degrees. Diverse sawing You can do plunge, MITRE and angled cuts Easy to clean table The large removable cutting table is easy to clean. No need to refill water Thanks to the refined recycling system which cleans water for reuse. Overload protection The ElgardTM overload protection system allows you to always cut at maximum speed, for best performance. Elgard™ LED indication for machine overload provides increased productivity and motor life. Easy angle cutting Angle guide and adjustable stand are included to facilitate cutting. Electronic SoftStart™ Provides starting with normal, slow acting fuses. Smooth start with normal fuses Softstart™ maintains high productivity even with normal fusesKindly contact us for more information about the suitable blade for your application

<table border="0" width="501" cellspacing="0" cellpadding="0"><colgroup> <col> <col> <col> </colgroup> <thead> <tr> <th style="height: 20px; text-align: left; width: 832px;" colspan="2" scope="row">MODEL</th> <th style="text-align: center; background-color: #d9dcdd; width: 528px;" scope="col">TS 60</th> </tr> </thead> <tbody> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row" height="20">Max. blade diameter (mm)</th> <td>250</td> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row" height="20">Max. depth of cut (mm)</th> <td>78</td> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row" height="20">Max. cutting depth for 45° angle cut (mm)</th> <td>45</td> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row" height="20">Max. length of cut (mm)</th> <td>726</td> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row">Arbor size (∅ mm)</th> <td>25.4</td> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row">Weight (kg)</th> <td>36</td> </tr> <tr> <th style="background-color: #cee5f6; text-align: left; width: 283px;" rowspan="3" scope="row">Dimensions (mm)</th> <th style="text-align: left; width: 548px;">Length</th> <td>932</td> </tr> <tr> <th style="text-align: left;" scope="row">Width</th> <td>700</td> </tr> <tr> <th style="text-align: left;" scope="row">Height</th> <td>468</td> </tr> <tr> <th style="background-color: #e2e4e5; text-align: left;" colspan="2" scope="row">ELECTRIC MOTOR</th> <th style="background-color: #d9dcdd; text-align: left;" scope="row">Single Phase</th> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row" height="20">Power (kW)</th> <td>0.8</td> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row" height="20">Voltage (V)</th> <td>230</td> </tr> <tr> <th style="height: 20px; text-align: left;" colspan="2" scope="row" height="20">Frequency (Hz)</th> <td>50</td> </tr> </tbody> </table>
