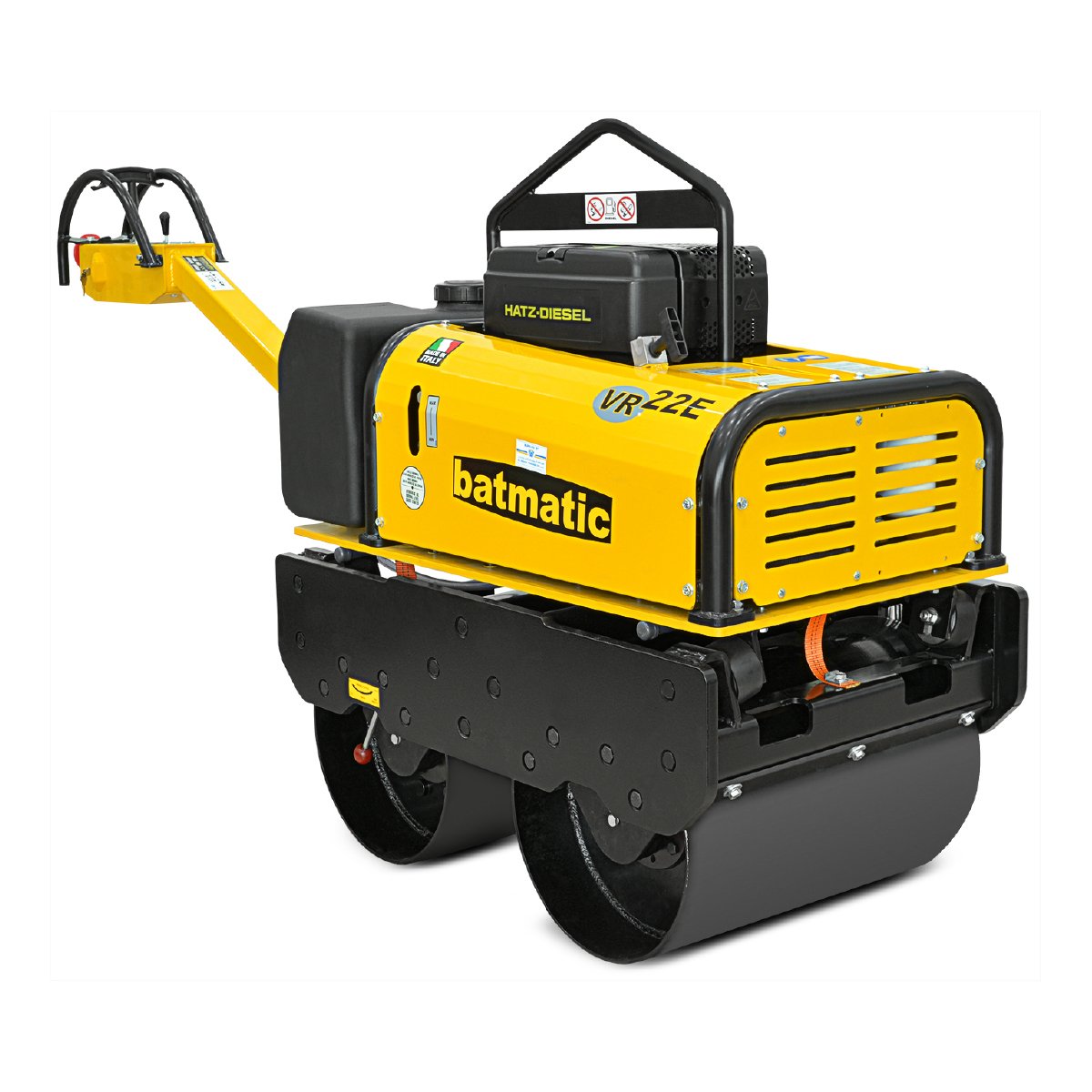

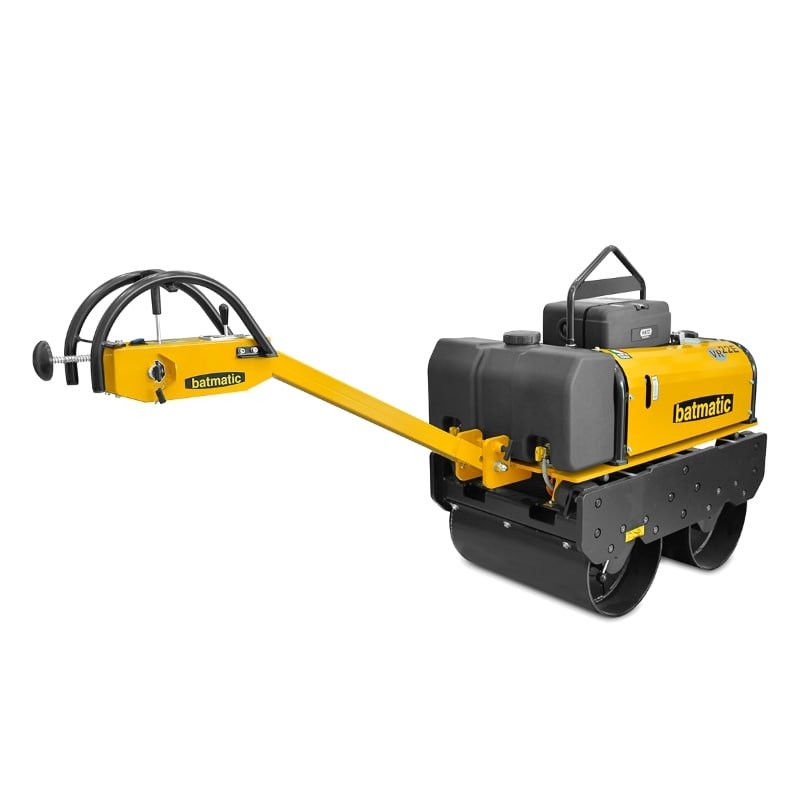

VR22-H / VR22-E GIP

<p><strong>WALK-BEHIND DOUBLE DRUM VIBRATORY ROLLER</strong><br>Manual Driven roller with double hydraulic traction; and vibration insertion activated by electromagnetic transmission and belts (VR22-E) &amp; Controlled by hydraulic system (VR22-H).Suitable for compacting asphalt or granular surfaces. The extremely compact frame allows the operator to work almost along the wall. Thanks to an efficient cooling radiator it has been possible to use few oil in the hydraulic circuit, allowing use in any climatic condition.</p><h3>&nbsp;</h3>

<table border="0" width="525" cellspacing="0" cellpadding="0"><colgroup> <col> <col> <col span="2"> </colgroup> <thead> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">MODEL</span></th> <th style="background-color: #d9dcdd;" scope="col"><span style="font-size: 18px;">VR22 E</span></th> <th style="text-align: center;" colspan="2" scope="col"><span style="font-size: 18px;">VR22 H</span></th> </tr> </thead> <tbody> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Transmission</span></th> <td><span style="font-size: 18px;">Hydraulic</span></td> <td><span style="font-size: 18px;">Hydraulic</span></td> <td><span style="font-size: 18px;">Hydraulic</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Vibration</span></th> <td><span style="font-size: 18px;">Electromagnetic</span></td> <td><span style="font-size: 18px;">Hydraulic</span></td> <td><span style="font-size: 18px;">Hydraulic</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Weight (kg)</span></th> <td><span style="font-size: 18px;">716</span></td> <td><span style="font-size: 18px;">725</span></td> <td><span style="font-size: 18px;">753</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Operating weight (kg)</span></th> <td><span style="font-size: 18px;">716</span></td> <td><span style="font-size: 18px;">725</span></td> <td><span style="font-size: 18px;">753</span></td> </tr> <tr> <th style="background-color: #cee5f6; width: 272px;" rowspan="2" scope="row"><span style="font-size: 18px;">Travel Speed (km/h)</span></th> <th style="width: 272px;"><span style="font-size: 18px;">Forward</span></th> <td style="width: 272px;"><span style="font-size: 18px;">4.8</span></td> <td style="width: 272px;"><span style="font-size: 18px;">4.8</span></td> <td style="width: 272px;"><span style="font-size: 18px;">4.8</span></td> </tr> <tr> <th scope="row"><span style="font-size: 18px;">Reverse</span></th> <td><span style="font-size: 18px;">2.4</span></td> <td><span style="font-size: 18px;">2.4</span></td> <td><span style="font-size: 18px;">2.4</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Max. gradable slope</span></th> <td><span style="font-size: 18px;">40% - 22°</span></td> <td><span style="font-size: 18px;">40% - 22°</span></td> <td><span style="font-size: 18px;">40% - 22°</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Angle of Lateral stability</span></th> <td><span style="font-size: 18px;">30% - 17°</span></td> <td><span style="font-size: 18px;">30% - 17°</span></td> <td><span style="font-size: 18px;">30% - 17°</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Oil tank capacity  (L)</span></th> <td><span style="font-size: 18px;">3.5</span></td> <td><span style="font-size: 18px;">4.0</span></td> <td><span style="font-size: 18px;">4.0</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Total oil in the circuit (L)</span></th> <td><span style="font-size: 18px;">6.5</span></td> <td><span style="font-size: 18px;">7.0</span></td> <td><span style="font-size: 18px;">7.0</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Water tank capacity  (L)</span></th> <td><span style="font-size: 18px;">45</span></td> <td><span style="font-size: 18px;">45</span></td> <td><span style="font-size: 18px;">45</span></td> </tr> <tr> <th style="background-color: #e2e4e5;" colspan="6" scope="row"><span style="font-size: 18px;">LOW FREQUENCY</span></th> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Centrifugal force (kN)</span></th> <td><span style="font-size: 18px;">14</span></td> <td><span style="font-size: 18px;">14</span></td> <td><span style="font-size: 18px;">14</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Vibration frequency (Hz)</span></th> <td><span style="font-size: 18px;">48.3</span></td> <td><span style="font-size: 18px;">48.3</span></td> <td><span style="font-size: 18px;">48.3</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Engine (rpm)</span></th> <td><span style="font-size: 18px;">2300</span></td> <td><span style="font-size: 18px;">2300</span></td> <td><span style="font-size: 18px;">2300</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Vibrator (rpm)</span></th> <td><span style="font-size: 18px;">2900</span></td> <td><span style="font-size: 18px;">2900</span></td> <td><span style="font-size: 18px;">2900</span></td> </tr> <tr> <th style="background-color: #e2e4e5;" colspan="6" scope="row"><span style="font-size: 18px;">HIGH FREQUENCY</span></th> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Centrifugal force (kN)</span></th> <td><span style="font-size: 18px;">22</span></td> <td><span style="font-size: 18px;">22</span></td> <td><span style="font-size: 18px;">22</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Vibration frequency (Hz)</span></th> <td><span style="font-size: 18px;">60</span></td> <td><span style="font-size: 18px;">60</span></td> <td><span style="font-size: 18px;">60</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Engine (rpm)</span></th> <td><span style="font-size: 18px;">2800</span></td> <td><span style="font-size: 18px;">2800</span></td> <td><span style="font-size: 18px;">2800</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Vibrator (rpm)</span></th> <td><span style="font-size: 18px;">3600</span></td> <td><span style="font-size: 18px;">3600</span></td> <td><span style="font-size: 18px;">3600</span></td> </tr> <tr> <th style="background-color: #e2e4e5;" colspan="6" scope="row"><span style="font-size: 18px;">DIMENSIONS</span></th> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Drum width (mm)</span></th> <td><span style="font-size: 18px;">650</span></td> <td><span style="font-size: 18px;">650</span></td> <td><span style="font-size: 18px;">650</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Drum diameter (mm)</span></th> <td><span style="font-size: 18px;">400</span></td> <td><span style="font-size: 18px;">400</span></td> <td><span style="font-size: 18px;">400</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Curb clearance (mm)</span></th> <td><span style="font-size: 18px;">240</span></td> <td><span style="font-size: 18px;">240</span></td> <td><span style="font-size: 18px;">240</span></td> </tr> <tr> <th style="background-color: #e2e4e5;" colspan="2" scope="row"><span style="font-size: 18px;">ENGINE</span></th> <th style="background-color: #e2e4e5;"><span style="font-size: 18px;">Hatz</span></th> <th style="background-color: #e2e4e5;"><span style="font-size: 18px;">Hatz</span></th> <th style="background-color: #e2e4e5;"><span style="font-size: 18px;">Hatz</span></th> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Model</span></th> <td><span style="font-size: 18px;">1 B40</span></td> <td><span style="font-size: 18px;">1 B40</span></td> <td><span style="font-size: 18px;">1 D42 Z</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Fuel</span></th> <td><span style="font-size: 18px;">Diesel</span></td> <td><span style="font-size: 18px;">Diesel</span></td> <td><span style="font-size: 18px;">Diesel</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Power (kW / HP)</span></th> <td><span style="font-size: 18px;">7.4 / 10.0</span></td> <td><span style="font-size: 18px;">7.4 / 10.0</span></td> <td><span style="font-size: 18px;">7.5 / 10.2</span></td> </tr> <tr> <th style="height: 20px;" colspan="2" scope="row" align="left" height="20"><span style="font-size: 18px;">Starter</span></th> <td><span style="font-size: 18px;">Electric</span></td> <td><span style="font-size: 18px;">Electric</span></td> <td><span style="font-size: 18px;">Electric</span></td> </tr> </tbody> </table>
