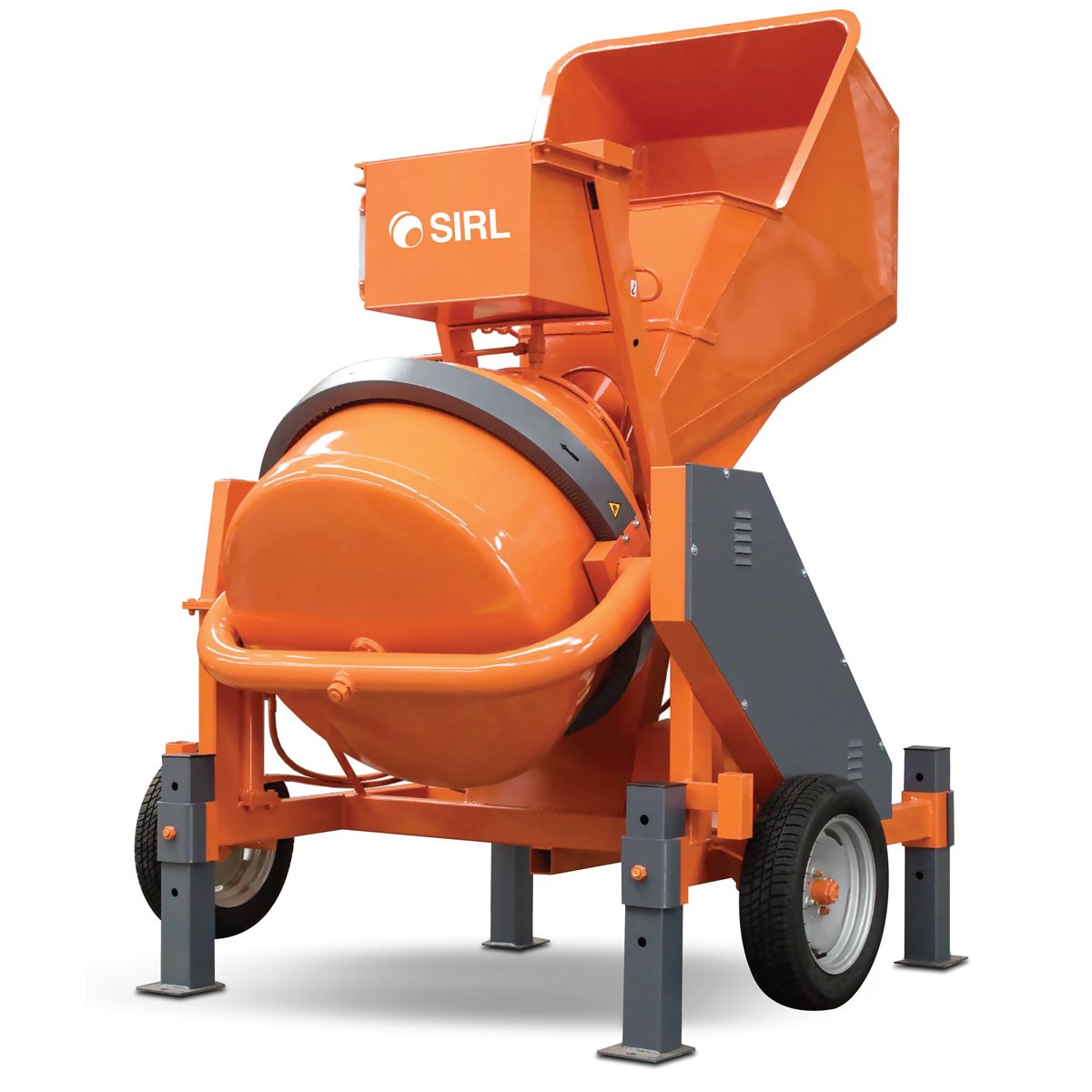

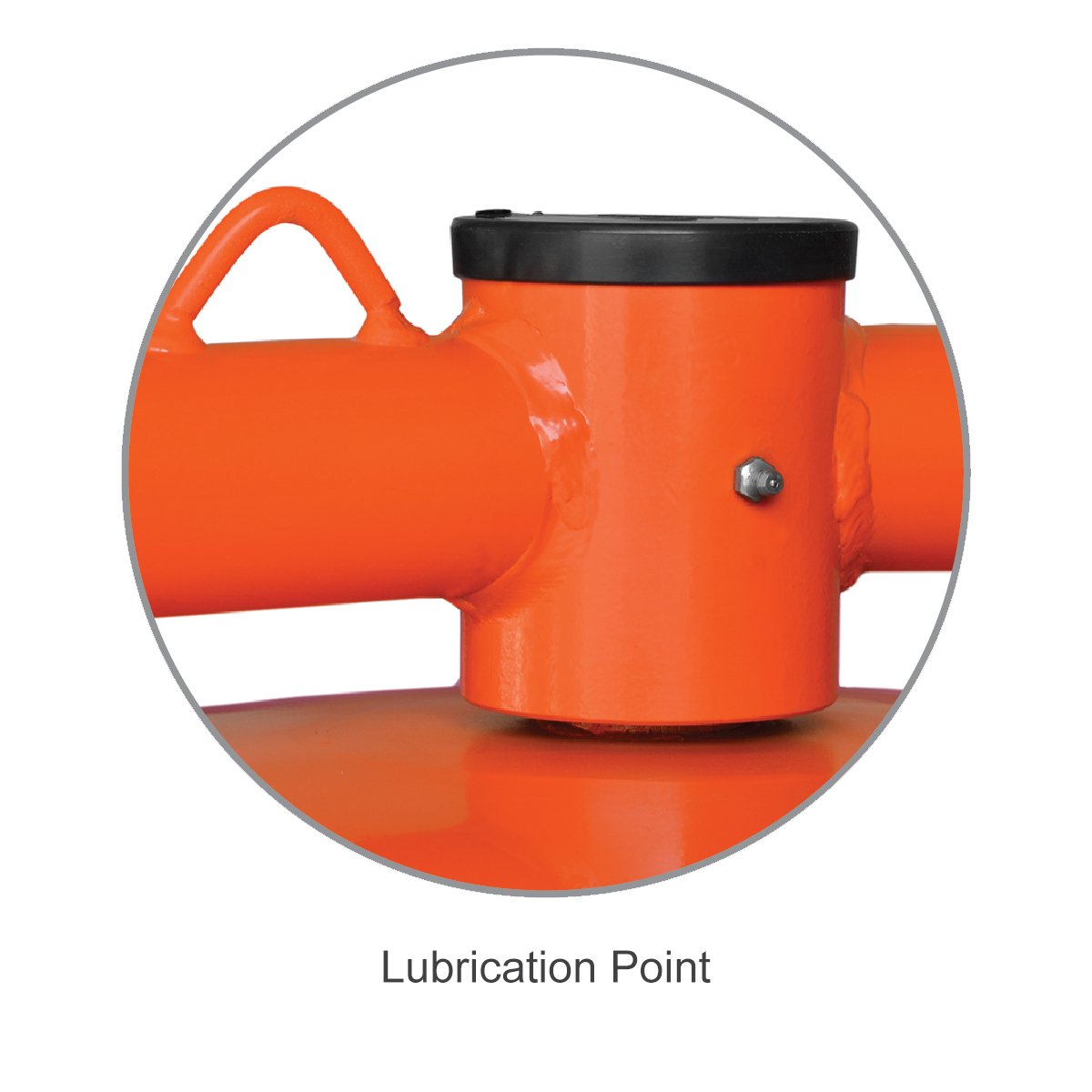

Drum with Reinforced Opening and 3 Double Mixing Blades Reinforced drum discharge gear ring Hydraulic control for drum tilting and in-charge hopper lifting Lubrication Point Epoxy Paint Finishing Accessories: Optional: Water Meter
MODEL BBH400 BBH500 Max. drum capacity (L) * 350 500 Max. mixing capacity (L) * 300 470 Water tank capacity (L) 60 60 Dosage (kg) 70 140 Drum rotation speed (rpm) 22 22 Production per hour (m 3 ) 8 12 Weight without drive unit (kg) 720 750 Drive unit type ElectricDiesel ElectricDiesel Dimensions (mm) * Length 1,800 2,000 Width 1,800 2,000 Height 2,500 2,700 ELECTRIC MOTOR Three Phase Three Phase Voltage (V) 380 / 400 380 / 400 Frequency (Hz) 50 50 ENGINE Lombardini Lombardini Model 15 LD 350 15 LD 350 Fuel Diesel Diesel Displacement (cm 3 ) 349 349 Power (kW / HP) 5.6 / 7.5 5.6 / 7.5 Weight (kg) 33 33
Drum with Reinforced Opening and 3 Double Mixing Blades Reinforced drum discharge gear ring Hydraulic control for drum tilting and in-charge hopper lifting Lubrication Point Epoxy Paint Finishing
Accessories:
Optional: Water Meter
MODEL
BBH400
BBH500
Max. drum capacity (L)*
350
500
Max. mixing capacity (L)*
300
470
Water tank capacity (L)
60
60
Dosage (kg)
70
140
Drum rotation speed (rpm)
22
22
Production per hour (m3)
8
12
Weight without drive unit (kg)
720
750
Drive unit type
ElectricDiesel
ElectricDiesel
Dimensions (mm)*
Length
1,800
2,000
Width
1,800
2,000
Height
2,500
2,700
ELECTRIC MOTOR
Three Phase
Three Phase
Voltage (V)
380 / 400
380 / 400
Frequency (Hz)
50
50
ENGINE
Lombardini
Lombardini
Model
15 LD 350
15 LD 350
Fuel
Diesel
Diesel
Displacement (cm3)
349
349
Power (kW / HP)
5.6 / 7.5
5.6 / 7.5
Weight (kg)
33
33
Kindly contact us to get technical details for a product tailored for your project requirements
