PROFESSIONAL HEAVY DUTY CEMENT MIXER
A concrete mixer is a machine used to mix the containers with which concrete is made in a rotating container.
Optional:

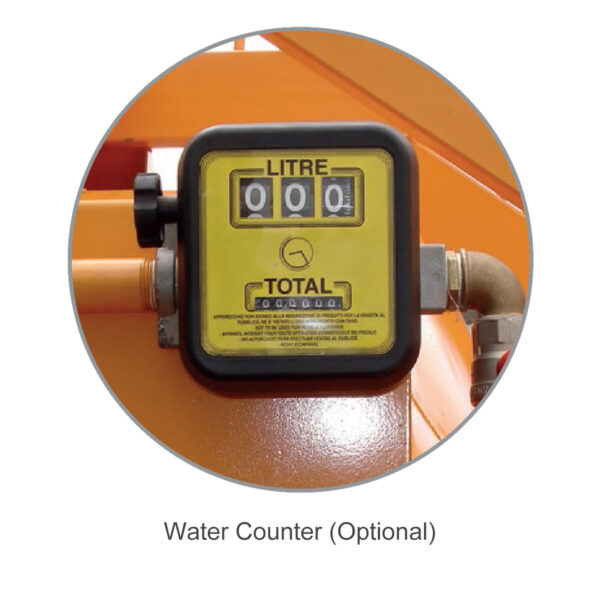

Water Meter

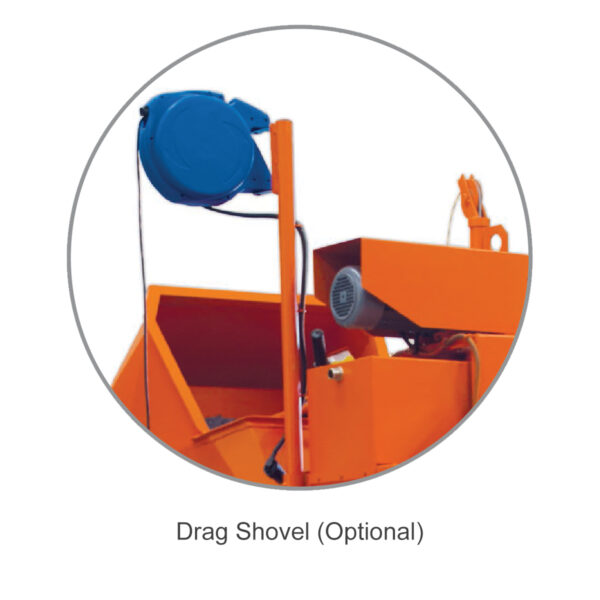

Drag Shovel

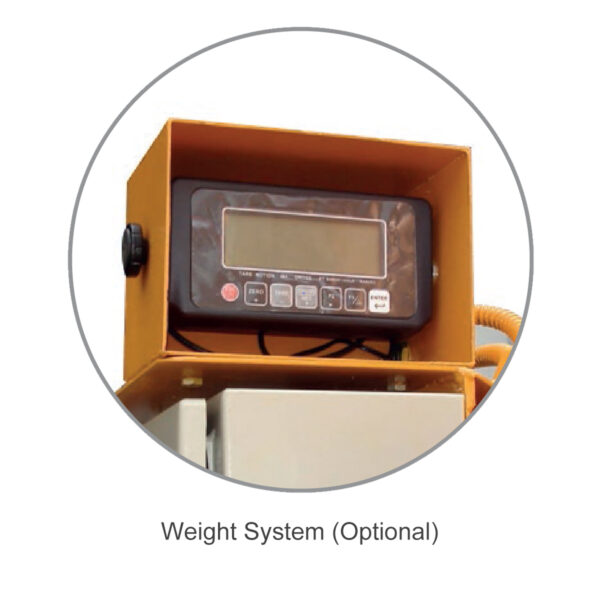

Weight System
MODEL | BRH600 | BRH800 | BRH1200 | |
---|---|---|---|---|
Max. drum capacity (L)* | 500 | 750 | 1,100 | |
Max. mixing capacity (L)* | 350 | 450 | 510 | |
Water tank capacity (L) | 80 | 80 | 100 | |
Dosage (kg) | 140 | 210 | 245 | |
Drum rotation speed (rpm) | 22 | 21 | 21 | |
Production per hour (m3) | 8 | 19 | 25 | |
Approximate weight (kg) | 1,250 | 1,300 | 1,450 | |
Drive unit type | Electric Diesel |
Electric Diesel |
Electric Diesel |
|
Dimensions (mm)* | Length | 2,900 | 3,200 | 3,500 |
Width | 1,900 | 1,900 | 1,900 | |
Height | 3,070 | 3,070 | 3,150 | |
LOADER | ||||
Speed (rpm) | 0.9 | 0.9 | 0.9 | |
Load (kg) | 200 | 200 | 200 | |
Steel cable length (mm) | 1,300 | 1,300 | 1,300 | |
Hydraulic circuit pressure (bar) | 140 | 140 | 140 | |
ELECTRIC MOTOR | Three Phase | Three Phase | Three Phase | |
Voltage (V) | 400 | 400 | 400 | |
Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | |
ENGINE | Lombardini | Lombardini | Lombardini | |
Model | 25 LD 435 | 25 LD 435 | 25 LD 435 | |
Fuel | Diesel | Diesel | Diesel | |
Power (kW / HP) | 5.59 / 7.50 | 5.59 / 7.50 | 5.59 / 7.50 |
PROFESSIONAL HEAVY DUTY CEMENT MIXER
A concrete mixer is a machine used to mix the containers with which concrete is made in a rotating container.
Reach out today to discuss your machinery requirements or automation solutions, and let us provide you with the best options.
