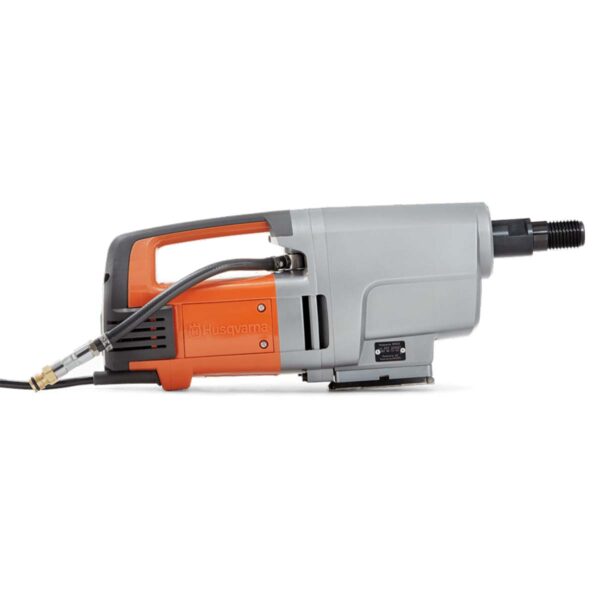

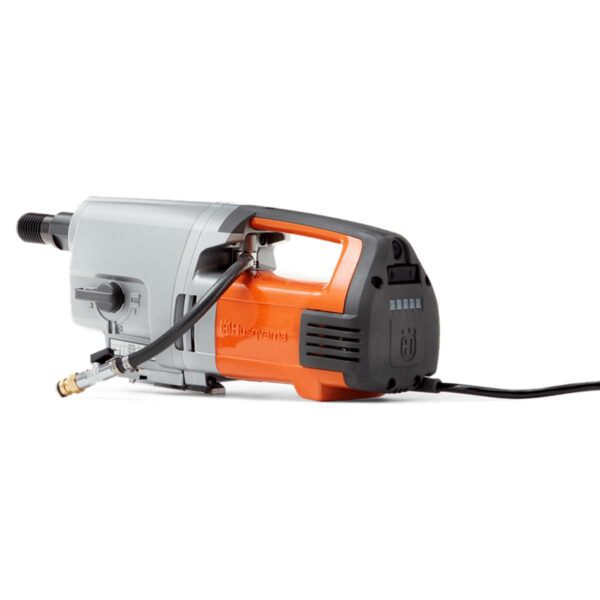

DM 340

In stock

Powerful electric core drill for use with stand. DM 340 is the perfect choice for medium and heavy core drilling where high production rates are needed, especially with large diameter core bits. Recommended diameter up to 400 mm. The motor is very easy to operate with several ergonomic features facilitating drilling and set up. Suitable for water evacuation, ventilation, angle drilling and stitch drilling.

 Drill with maximum pressure
A LED indicator shows the load of the machine, allowing you to always drill at maximum pressure.
 Durable and ergonomic design
Durable and shock-proof, designed to protect the electronics. Easy to carry and install thanks to low weight and ergonomic design.
 Reliable gearbox
Watercooled 3 speed gearbox for optimal drilling performance and longer service intervals.
 Angle drilling
Drilling holes in stepless adjustable angles.
 Barriers
Drilling for installation of stair rails, fences, etc.
 Horizontal drilling
Drilling horizontally.
 Stitch drilling
Drilling multiple holes next to each other to make openings.
 Vertical drilling
Drilling upwards and downwards.
 Easy start with reduced speed
To facilitate making a starter hole, speed is reduced by half using the Smart Start® button.
 Overload protection
Increases productivity and extends service life.
 Load indicator
The LED indicator shows the load of the machine, allowing the operator to always drill at maximum pressure, for best performance.
 Elgard™
The machine uses pulsation to warn you of an approaching overload. This increases productivity and extends product life.
 Softstart™
An electronic current limiter for soft starts with normal fuses. This gives you a smooth start with high productivity.
 Water evacuation
Drilling for water evacuation.
 Channels, pipes and cables
Drilling ventilation channels and holes for pipes and cables.

MODEL DM 340
Recommended drill diameter (mm) 50 – 400
Outer spindle thread 1 1/4″ 7 UNC
UNC water coupling G 1/4″
Weight (kg) 14.0
Sound power level (dB (A)) 97
Sound pressure level (dB (A)) 88
ELECTRIC MOTOR Single Phase
Power (kW) 3.3
Voltage (V) 230
Speeds 3
Spindle speed (rpm) Unloaded 310
690
1190
Loaded 240
530
915
