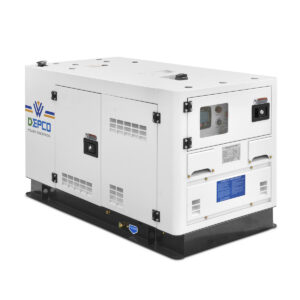

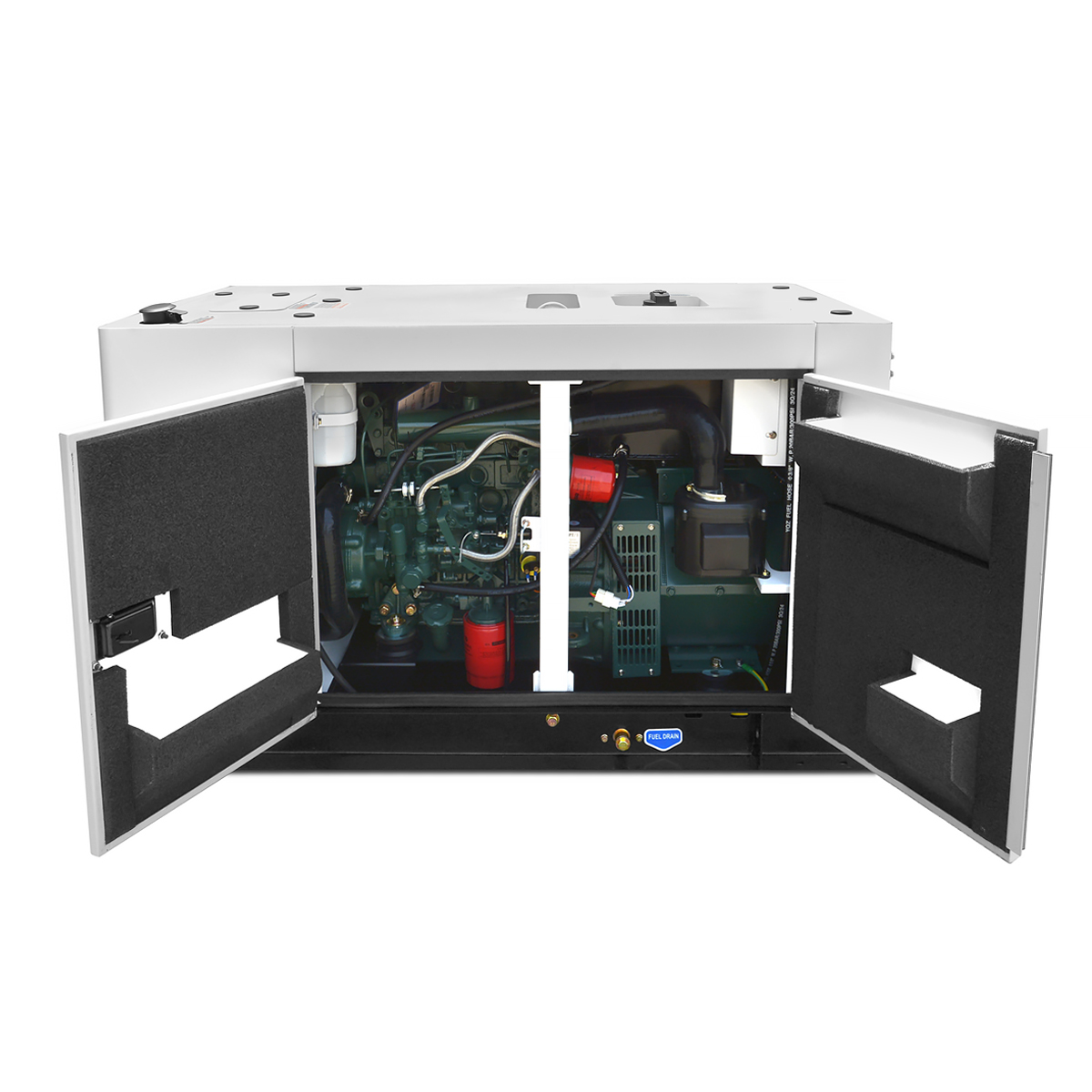

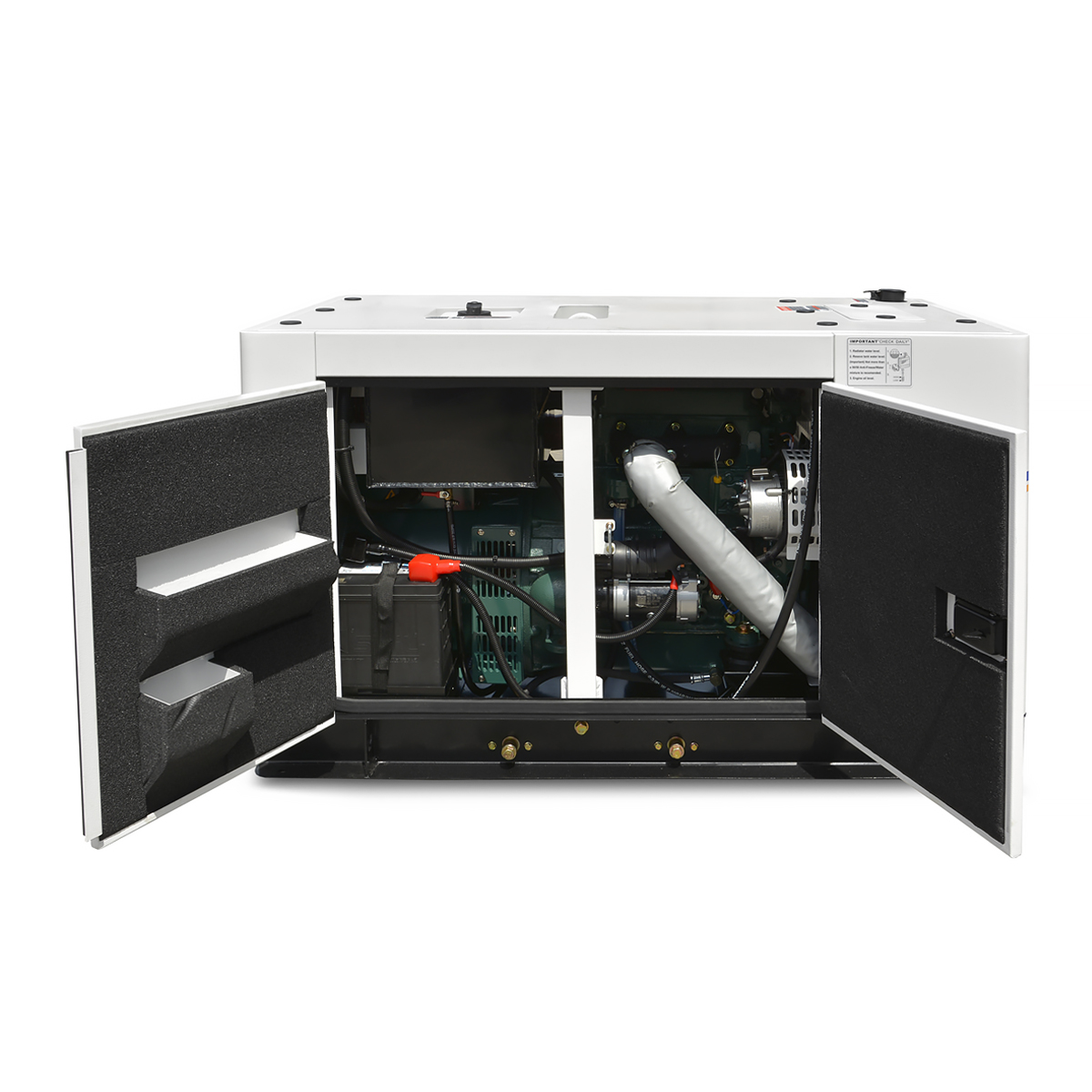

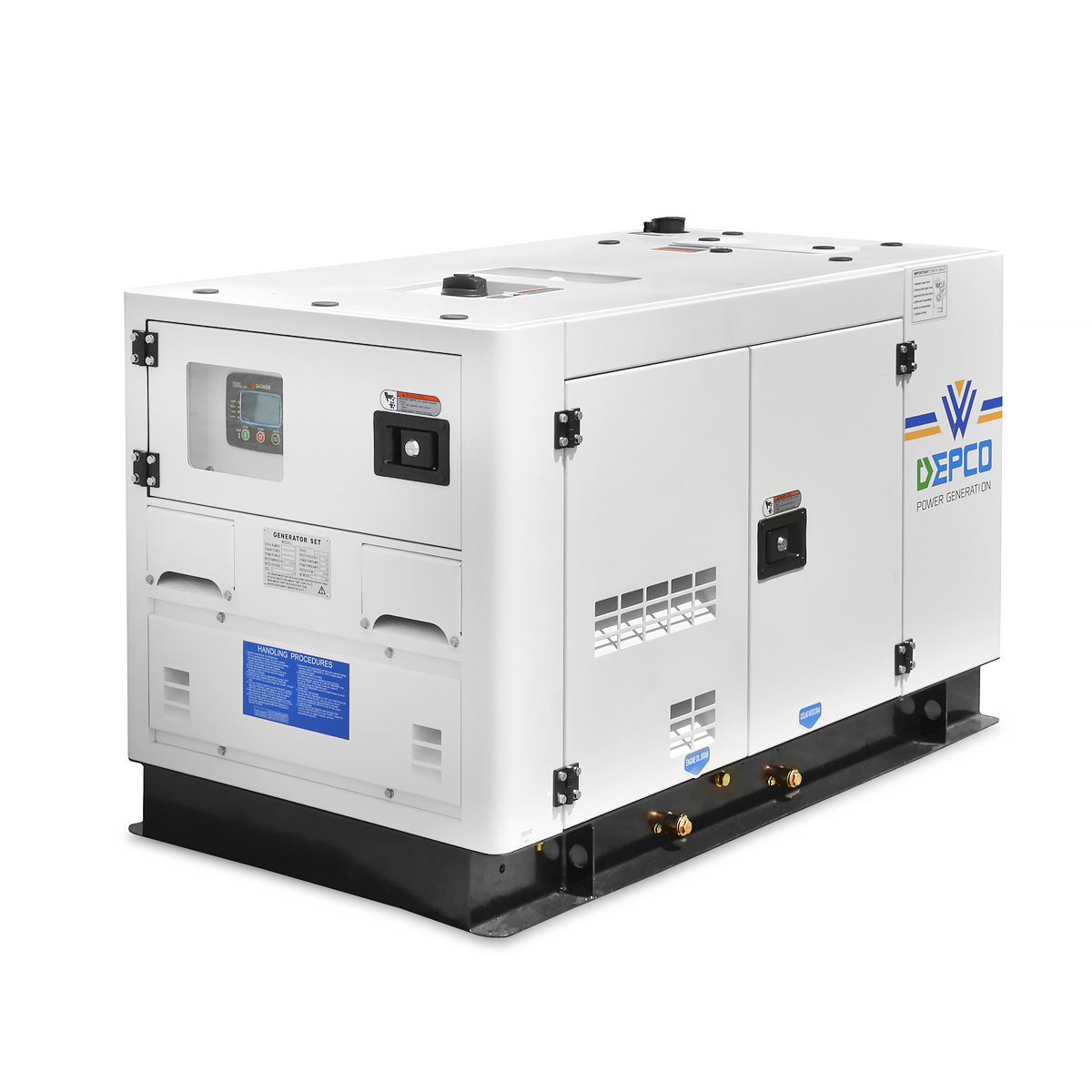

DPK-DK-13
| Generating Set Model | |||
|---|---|---|---|
| Output Rating | PRIME | STANDBY | |
| 50 HZ 380-415V, 1500 RPM | 12.5 KVA | 13.8 KVA | |
| 10.0 KW | 11.0 KW | ||
| Engine | |||
| Engine Make | DEPCO | ||
| Engine Model | DEPCO-385 | ||
| Governing Type | Mechanical | ||
| Number of Cylinders | 4 | ||
| Cylinder Arrangement | In-line | ||
| Bore and Stroke (mm) | 85 x 90 | ||
| Displacement | 1.532 | ||
| Aspiration | Natural | ||
| Cycle | 4 Stroke | ||
| Compression Ratio | 18.0:1 | ||
| Cooling System | Water-Cooling | ||
| Frequency & Engine Speed | 50 HZ & 1500 RPM | ||
| PRIME | STANDBY | ||
| Gross Engine Power kWm | 12 kWm | – | |
| Fuel Consumption @ 100% L/hr | 3.4 | – | |
| Fuel Consumption @ 50% L/hr | – | – | |
| Alternator Data | |||
| Make | DEPCO | ||
| Model | DEPCO-10-3 | ||
| No. of Bearings | 1 | ||
| Insulation Class | H | ||
| Wires | |||
| Ingress Protection | IP23 | ||
| Excitation System | Shunt | ||
| Voltage | ±1% | ||
| Dimension & Weight | |||
| Length mm | 1300 | ||
| Width mm | 680 | ||
| Height mm | 760 | ||
| Weight*kg | 462 | ||
| Fuel Tank Capacity | 25 L | ||
| Control Panel | |||
| Make | DATAKOM | ||
| Model | D100 | ||
