Expert 600

In stock

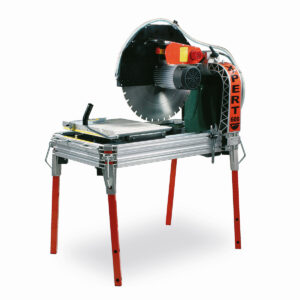

EXPERT is a masonry saw ideal for the building sector.
Innovative design with high tech solutions, very precise, compact, light and strong, it’s suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.

TT Power
The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws.
AxT
(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality
Spray system
Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard.
Fast Leg
The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging.
W Dec
Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water.

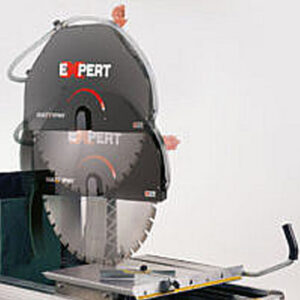

Adjustable head
Adjustament system of the cutting height with a hand wheel and relevant locking lever. Possibility to make cuts with 2 RUNS.
Structure
Aluminium draw-plate to get the maximun of rigidity and lightness at the same time. It has four handles for the carriage and movement.

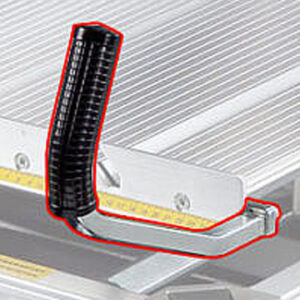

Handle on the working table
To get the maximum safe to the operator.
Working table
The working table is very strong and steady. It slides on 2 steel square rails with 6 wheels; 4 over and 2 under. Every wheel has 2 ball bearings for a total of 12.
Disk brake security (optional)
A braking system for three-phased motors, which allow a very fast complete stop of the disk after the saw switch-off.

Accessories:

Optional:
Wheels kit
Sound rotation security
Laser instrument
45° Angle cutting accessory

MODEL Expert 600
Blade (Ø mm)* 600
Max. straight cutting length (mm) 750

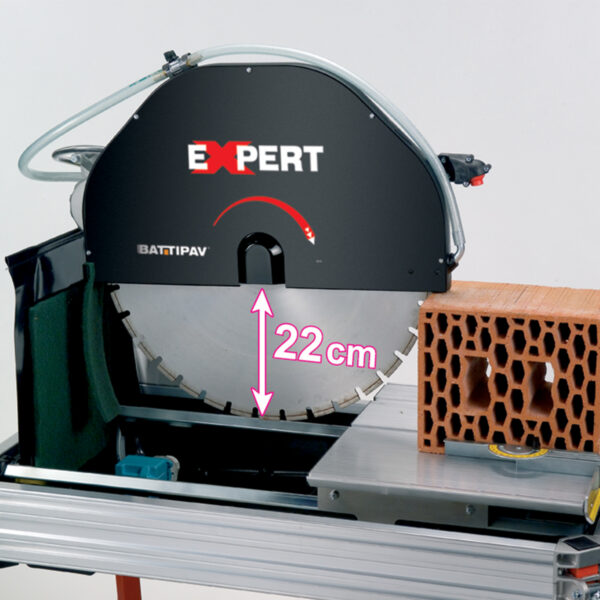

Max. cutting depth for straight cut (mm) 220
Max. size tile for diagonal cutting (mm) 412 x 412
Max. cutting depth with 2 runs (mm) 285
Working table dimension (L x W) (mm) 442 x 520
Tool hole (Ø mm) 25.4
Rotation speed (rpm) 1400
Motor type 1 phase – 230V ~ 50 Hz
3 phase – 400V ~ 50 Hz
Motor power (HP / kW, A) 1 phase – 4.5 / 3.5, 8.0
3 phase – 5.5 / 4.0, 8.0
Water recycling pump type S3
Water tank capacity (Min. / Max.) (ltrs.) 19 / 25
Thermic protection (°C) 160
Amperometrical protection (A) 10 – 16
Net weight (kg) 81

Download More Details
