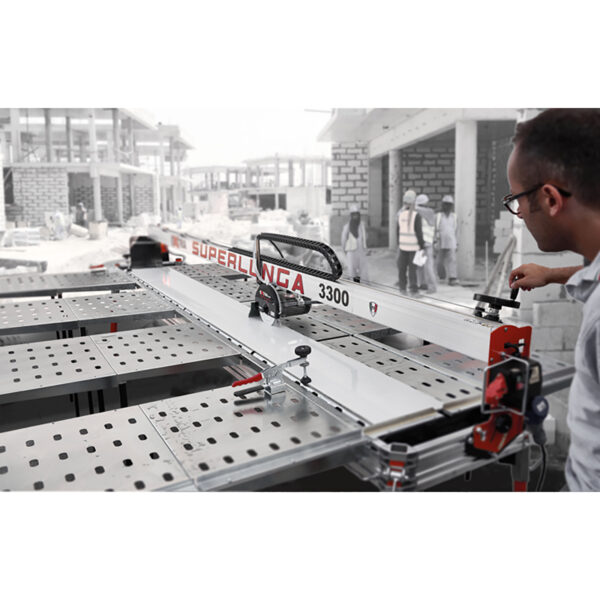

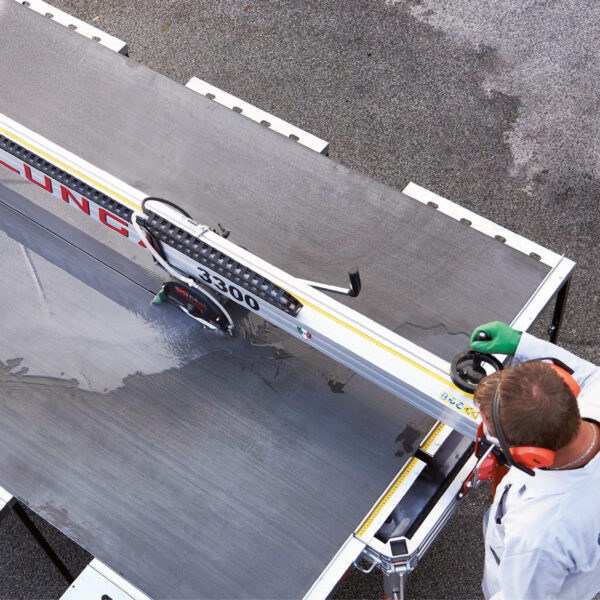

A new radial tile cutter ideal for straight and 45° angle cuts on oversize porcelain tiles.
A new designed bridge profile with vanguard technical innovation, strong and precise, equipped with a POWERFUL MOTOR, sliding and plunging cutting head..
TT Power
The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws.
AxT
(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality

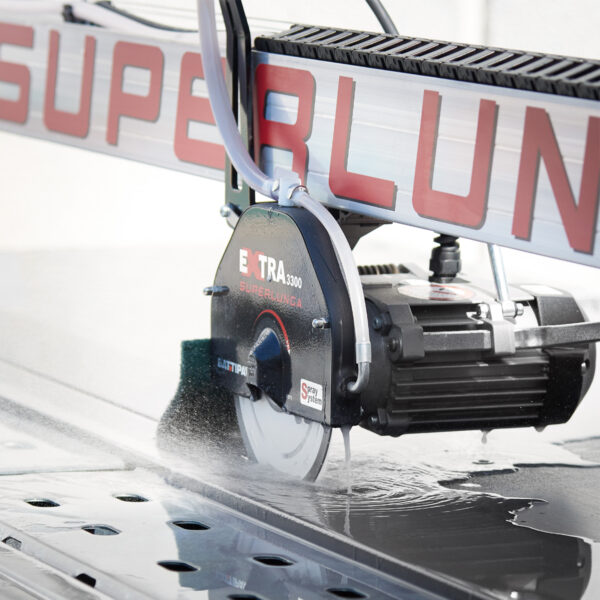

Spray system
Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard.
Fast Leg
The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging.
W Dec
Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water.

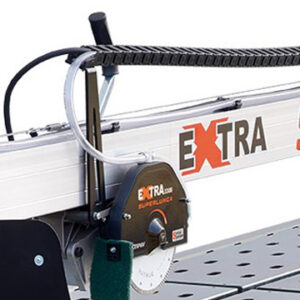

Cable Chain
The cable chain system improves the ergonomics of the machine and its disk water cooling.

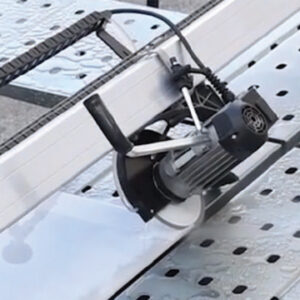

Tilting Head
Position for 45° angle cuts.

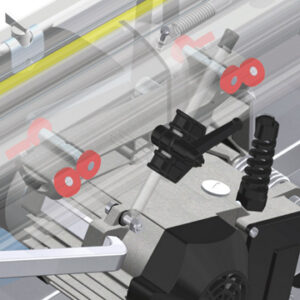

Carriage Engine Group
The carriage engine group slides with 8 ball-bearings on interchangeable stainless steel track; providing a very fast and precise cuts.

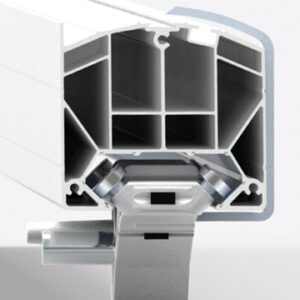

Rail
Reinforced structure rail to avoid any bending in the middle. Equipped with interchangeable stainless steel track for a perfect sliding of the motor group carriage.

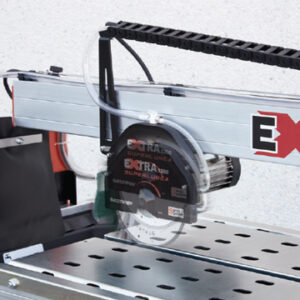

Plunging Head
The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape.
Included:
Wheels kit
Laser instrument

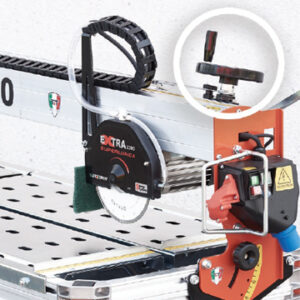

Cutting Progress System
Extension side bench (4 pcs.)
Optional:
B-Lock for thickness up to 40 mm
Side bench with rollers

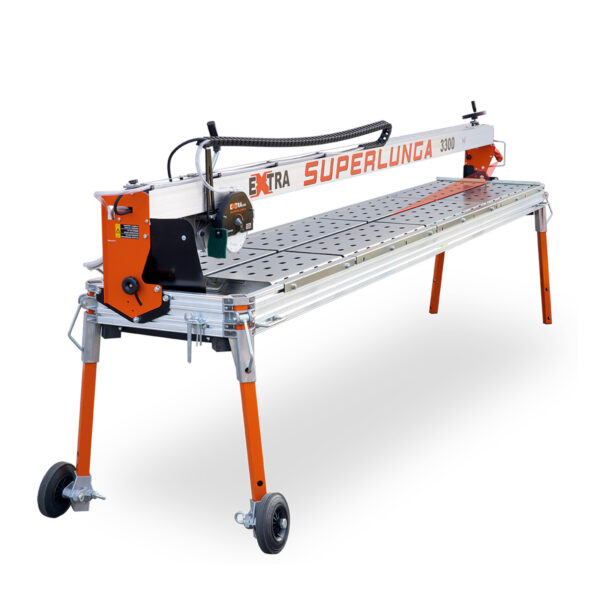

MODEL | Extra Superlunga 3300S |
---|---|
Blade (Ø mm)* | 200 |
Max. straight cutting length (mm) | 3300 |
Max. cutting depth for straight cut (mm) | 40 |
Max. size tile for diagonal cutting (mm) | 2330 x 2330 |
Max. cutting depth with 2 runs (mm) | 55 |
Max. cutting depth for 45° angle cut (mm) | 35 |
Tool hole (Ø mm) | 25.4 |
Rotation speed (rpm) | 2800 |
Motor type | 1 phase – 230V ~ 50 Hz |
Motor power (HP / kW) | 1.8 / 1.4 |
Water recycling pump type | S1 |
Water tank capacity (Max.) (ltrs.) | 25 |
Thermic protection (°C) | 170 |
Amperometrical protection (A) | 13 |
Net weight (kg) | 181 |
