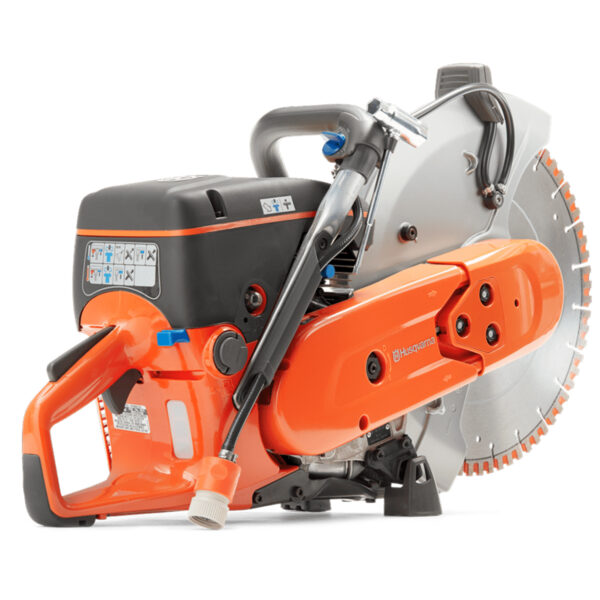

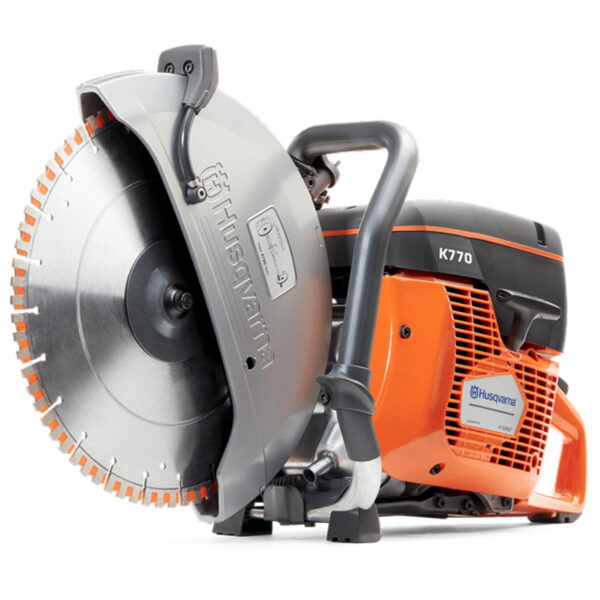

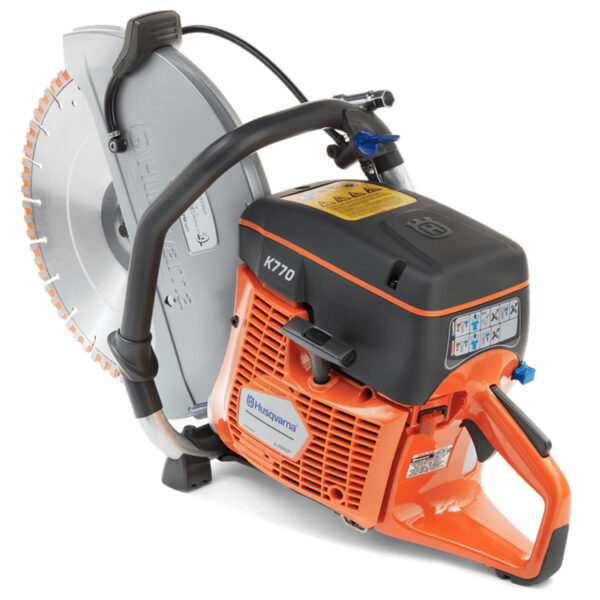

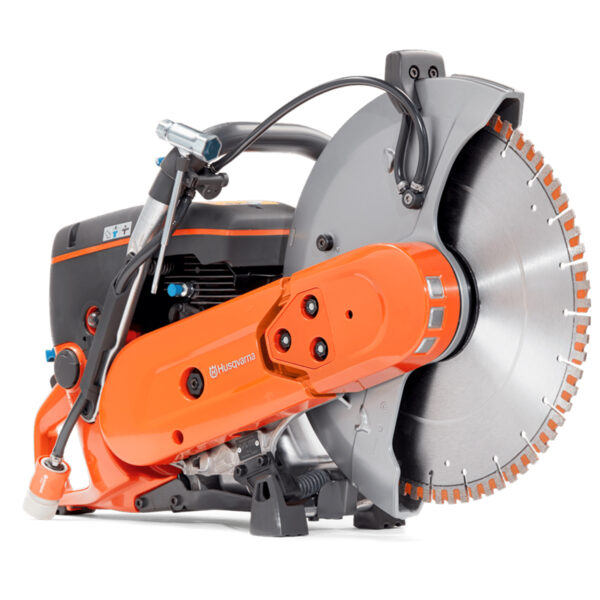

• Husqvarna K 770 Power Cutter

K 770

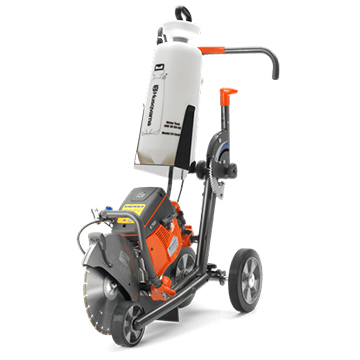

The Husqvarna K 770 is a powerful all-round power cutter with features that make it one of the best power cutters on the market. Equipped with semi-automatic SmartTension™ system allows for optimal power transmission, minimum wear and maximum belt life. The light weight, outstanding power-to-weight ratio, the reliable start and exceptionally low vibrations mean less strain and maximized productivity. Suitable for road work and easy to cut in a straight or curved track or close to sidewalk when used with KV7 trolley.

Easy and optimal belt tensioning
The semi-automatic Smart Tension minimizes the risk of under- and over tensioning.
Light and powerful
A light, compact and powerful machine with superior power-to-weight ratio.
Heavy-duty cutting arm
The new-designed cast magnesium crankcase has a three-bolt joint to attach the cutting head, enabling higher torsional rigidity than the previous two-bolt solution.

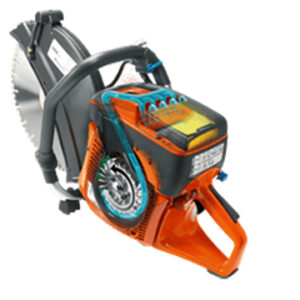

Long service intervals
A strong Poly-V belt combined with our maintenance-free starter DuraStarter™ and efficient filter-system Active Air Filtration™ ensures long service intervals.

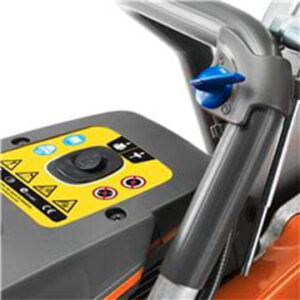

Easy to start
The unique design of the carburettor, cylinder and digital ignition system, together with air purge and decompression valve ensure an easy start.

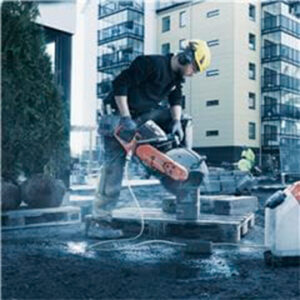

Optimized engine performance
Optimised engine performance through efficient cylinder design, digital ignition system and X-Torq engine technology.

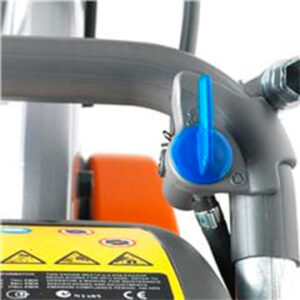

Less slurry and low water consumption
Excellent dust control with our wet cutting kit. A progressive water valve for exact adjustment of the water volume to efficiently bind the dust and reduce slurry.

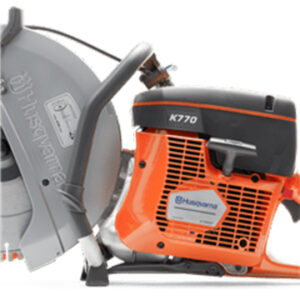

Easy to change blade guard position
The light magnesium blade guard facilitates cutting, thanks to its step-less adjustment.
Easy to start
The unique design of the carburettor, cylinder and digital ignition system, together with air purge and decompression valve ensure an easy start.

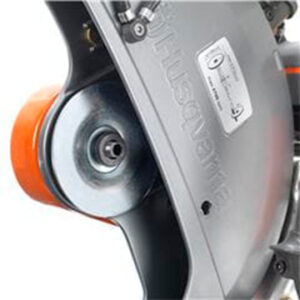

Fits multiple blade bushings
Blades with 20mm and 25.4mm bore can be fitted thanks to the reversible blade bushing.
Less emissions and fuel consumption
Our X-Torq® engine produces less emissions, lower fuel consumption and produces more power.

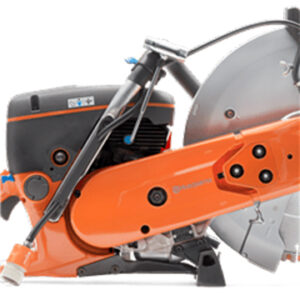

Reduced wear
Reduced wear thanks to the drive belt with fully sealed transmission, which keeps out the cutting dust.
DuraStarter™
Our virtually maintenance free starter, thanks to the dust-sealed starter and the durable starter cord.
SmartCarb™
Our built-in automatic filter compensation maintains high power during the air filter life time.

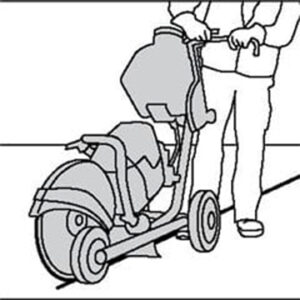

Asphalt
Asphalt cutting in roadworks.
Blocks, curbstones and pavers
Cutting building blocks, curbstones and garden pavers.
Burying of cables
Burying of all kinds of cables.

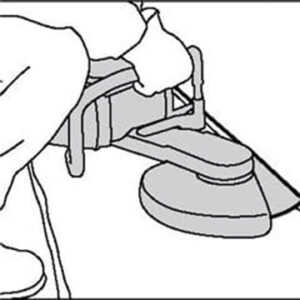

Floors and walls
Regular cutting in floors and walls.

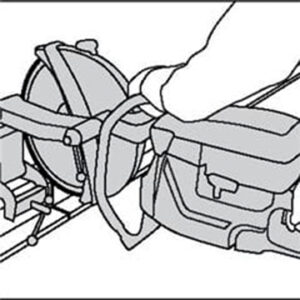

Rails
Rail cutting.

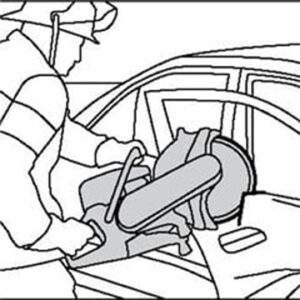

Rescue cutting
Cutting in rescue operations.
Digital ignition with optimized timing
Provides a powerful spark with optimized timing, enabling easy start and efficient combustion.
Exceptionally low vibrations
Vibrations below 2.5 m/s2 in the cutter handles for more comfort and longer operation periods.
Maintenance-free air filter
The only time the filter needs to be checked and changed is if you experience lack of power.
Smooth blade stop
Reduces the stop time of the blade when the machine is switched off, which enables you to quickly move on to the next job.
Maintenance-free starter
Our dust-sealed starter, where the return spring and the pulley bearing are sealed, gives a virtually maintenance free starter. Developed with a durable starter cord.
Active Air Filtration™
Our two-step filtration system with centrifugal cleaning and a single paper filter increases product life and extends service intervals.
Anti-vibration system
Reduced vibrations in the cutter handle for more comfort and longer operation periods.
Poly-V belt
Provides better transmission of power, less frequent re-tensioning and extended service intervals.
Cast concrete
Cutting cast concrete.
Blade shaft and bearings
Provide extended blade life and reduces maintenance.

MODEL K 770 (12″) K 770 (14″)
Blade diameter (mm) 300 350
Max cutting depth (mm) 100 125
Weight, without fuel and cutting equipment (kg) 10 10.1
Power / weight ratio 0.37 0.37
Sound power level Lwa (dB (A)) 115 115
Sound pressure level (dB (A)) 101 101
ENGINE 2-Stroke air-cooled 2-Stroke air-cooled
Power (kW) 3.7 3.7
Displacement (cc) 74 74

Recommended Equipment:

Download More Details
