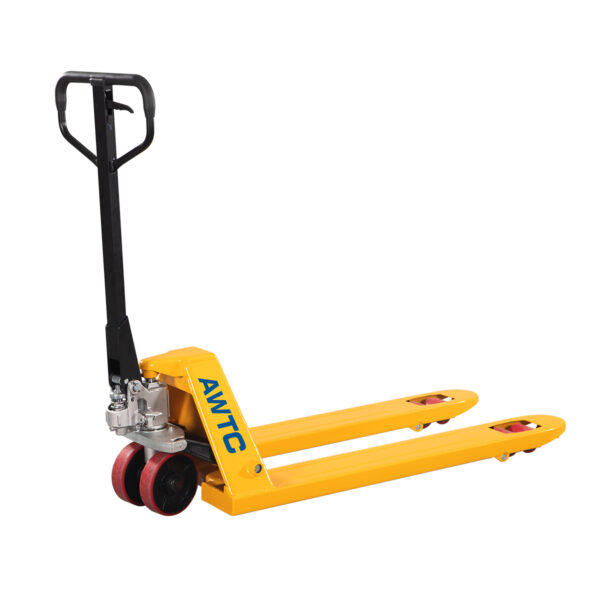

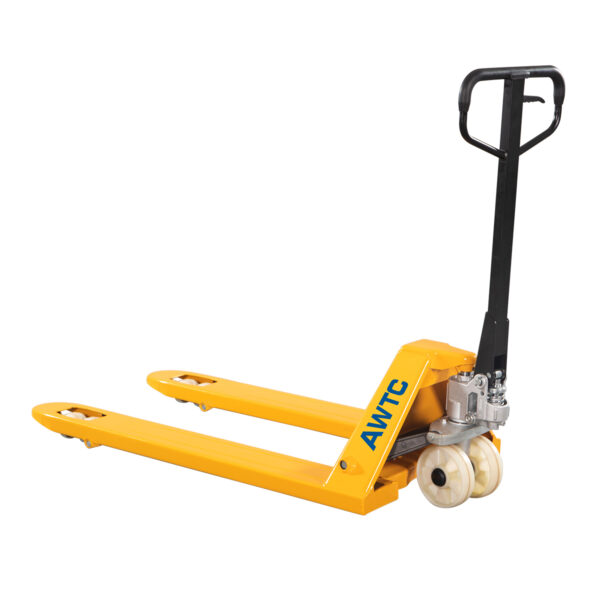

Manual Hydraulic Hand Pallet Truck (3 ton / 5 ton)

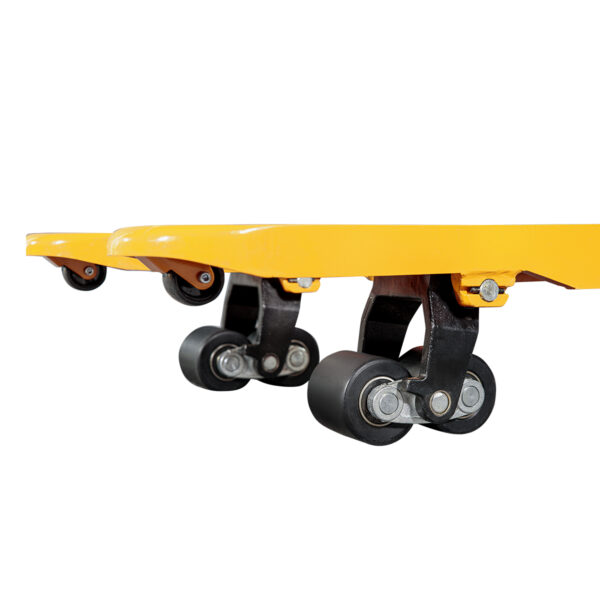

Double front rollers

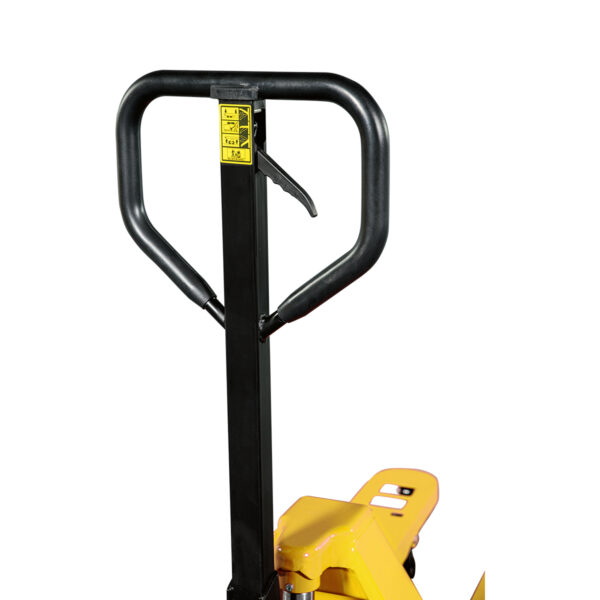

Ergonomic handle

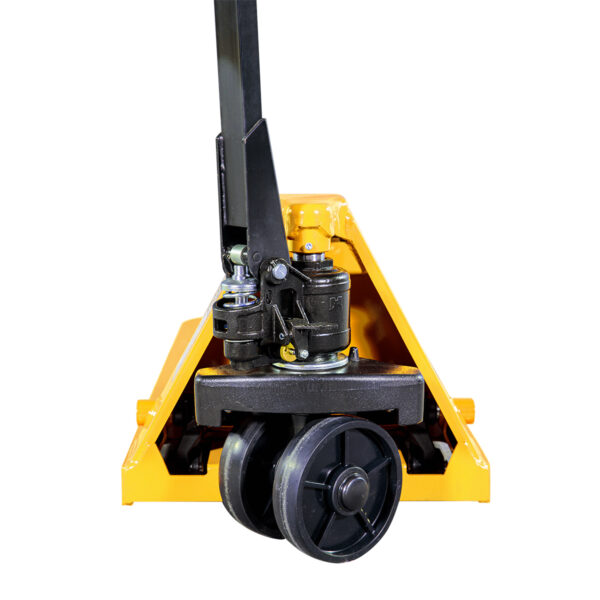

Hydraulic pump
Heavy duty pallet truck
Polyurethane covered steel steer wheels

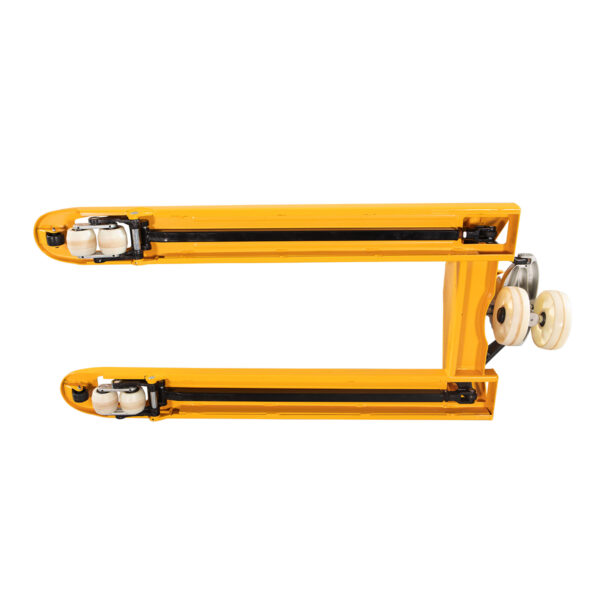

Nylon Load Wheels
Easy availability of spare parts
Solid steel push rods
Reinforced steel frame with cross-welded steel plates to prevent fork from bending
AWTC heavy duty hand pallet trucks thrive in various applications, being used by operators of all experience levels. Easy-to-use, these hand pallet trucks are a dependable source for moving materials in your applications.
| Capacity (kg) | 3,000 | 5,000 | |
|---|---|---|---|
| Max. lifting height (mm) | H1 | 195 | 195 |
| Lowered fork height (mm) | H2 | 75 | 85 |
| Height of tiller in drive position (mm) | H3 | 1,215 | 1,250 |
| Overall length (mm) | L1 | 1,550 | 1,550 |
| Fork length (mm) | L2 | 1,150 | 1,150 |
| Width overall forks (mm) | B1 | 550 | 550 |
| Width between forks (mm) | B2 | 230 | 220 |
| Width of fork (mm) | B3 | 160 | 176 |
| Ground clearance (mm) | M1 | 15 | 25 |
| Steering wheel diameter (mm x mm) | 180 x 50 | 200 x 50 | |
| Loading rollers diameter (mm x mm) | 74 x 70 | 80 x 70 | |
Download More Details
