OL32S

In stock

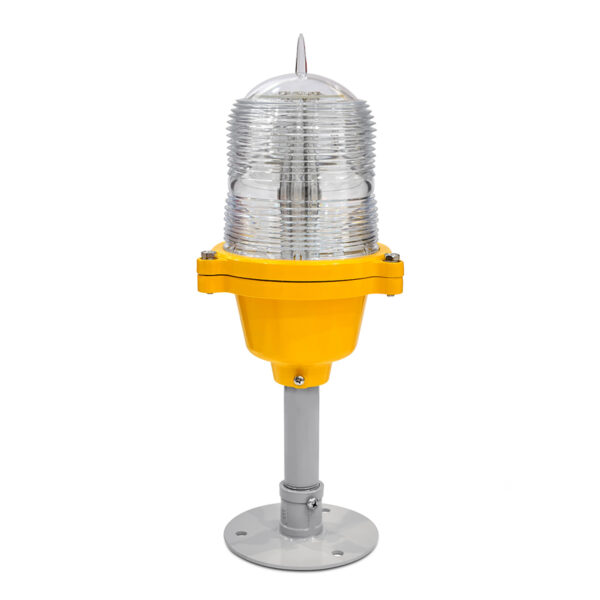

OL32 series is ICAO certified low intensity obstruction lighting model. Complying with ICAO low intensity type A&B&E and FAA L- 810 & L-810F, the effective intensity of OL32 exceeds 32.5 candelas under both steady and flashing modes.

OL32S LED module consists of 8 ultra-bright Philips LEDs. The polycarbonate Fresnel lens concentrates and distributes LED light beams to output standard-compliant intensity and distribution. The efficient optical system and low-energy circuit design make the light only consume 4 watts.

With a G3/4’’ universal threaded hub on the bottom, OL32S can be mounted on a conduit or with REDDOT brackets designed for towers and buildings. There is a terminal block on its power board inside for wiring. Prewired cable makes wiring easier without opening light head.

OL32S single obstruction light can be used on top of structures less than 45m. In most cases, multiple OL32S single lights are installed in one or more horizontal levels for marking a structure’s outline with medium intensity obstruction lights.

8 pcs of 0.5 W Philips LEDs, reliable light source ensures long lifespan
The efficient optical design provides excellent light distribution
Internal LED driver and constant current regulator make the light illuminate steadily
96% more energy-saving than traditional 100W incandescent light bulb
PCB integrated LED module and circuit provide better vibration resistant than E27 type
GE polycarbonate dome, UV-stabilized
Bird spike for preventing birds from landing and nesting
Aluminum base with powder painted, corrosion-resistant
Silicon gasket enhances waterproof
G3/4’’ threaded bottom entry for easily mounting
Stainless steel safety rope protects light head from fall-off during maintenance
Automatically off if continue working 18 hours
IP67 ON-OFF switch for protecting the battery from overdischarging
Built-in 6-pin terminal block for connecting power and alarm
Prewired cable for easy wiring job without opening light head
Built-in photocell for auto on/off is available
Both NO and NC dry alarm contacts are available
Protection: Polarity reverse, overvoltage and short-circuit

MODEL OL32S
Effective intensity (cd) >32.5
Vertical beam (degree) >10
Horizontal spread (degree) 360
Light source Philips LEDs
LED color Red
LED lifespan (hours) 100,000
Flash pattern Steady burning / Flashing (20FPM as default)
POWER SUPPLY
Input voltage (VAC) 85-245
Power consumption (W) 4
MECHANICAL STRUCTURE
Mounting G3/4’’ threaded bottom entry
Net weight (kg) 0.9
Dimensions (W x H) (mm) 159 x 245
Protection IP65
Operation temperature (°C) -40 ~ 70
Operation humidity (%) 0-95 RH non-condensing
Max. wind resistance (kph) 240
