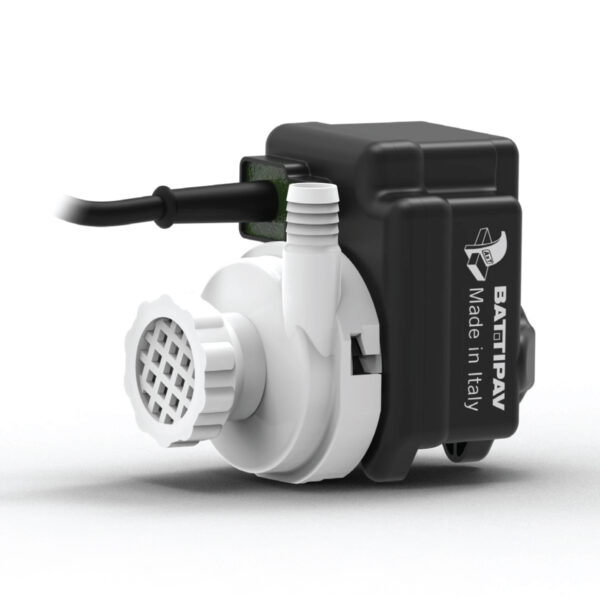

Submersible Pump

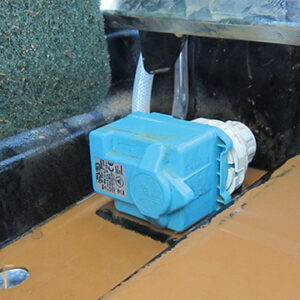

Professional submersible water pump for water recirculation in brick-tile saws. A full range of four models according to the capacity and amount of pumped water.

TT Power
The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws.
AxT
(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality
Spray system
Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard.
Fast Leg
The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging.
AxT
In order to better identify our submerged pumps and to safeguard quality and longevity, each product is marked with the registered trademark AxT.
Certified
All the pumps in the standard tensions, have TÜV/GS approval.
Electrical Tests
All the pumps are subject to rigid electrical quality tests.
After work
Professional submersible water pump for water recirculation in brick-tile saws.
Extra Cut
A braking system for three-phased motors, which allow a very fast complete stop of the disk after the saw switch-off.

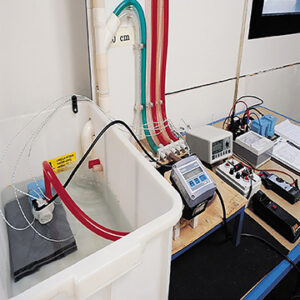

Hydraulic Tests
Every model is subject to verifications of the respective hydraulic characteristics.

MODEL P0 P1 P2 P3
Water flow rate (L/h) 700 850 1,000 1,560
Head (m) 1.9 2.2 2.4 2.5
Cable length (m) 2.2 2.2 2.2 2.2
Isolation class F F F F
IP grade X8 X8 X8 X8
ELECTRIC MOTOR Single Phase Single Phase Single Phase Single Phase
Voltage (V) 230 230 230 230
Frequency (Hz)* 50 50 50 50
Power (W) 35 50 55 60

Download More Details

PROFESSIONAL HEAVY DUTY CEMENT MIXER

concrete mixer is a machine used to mix the containers with which concrete is made in a rotating container.
