Supreme 150

In stock

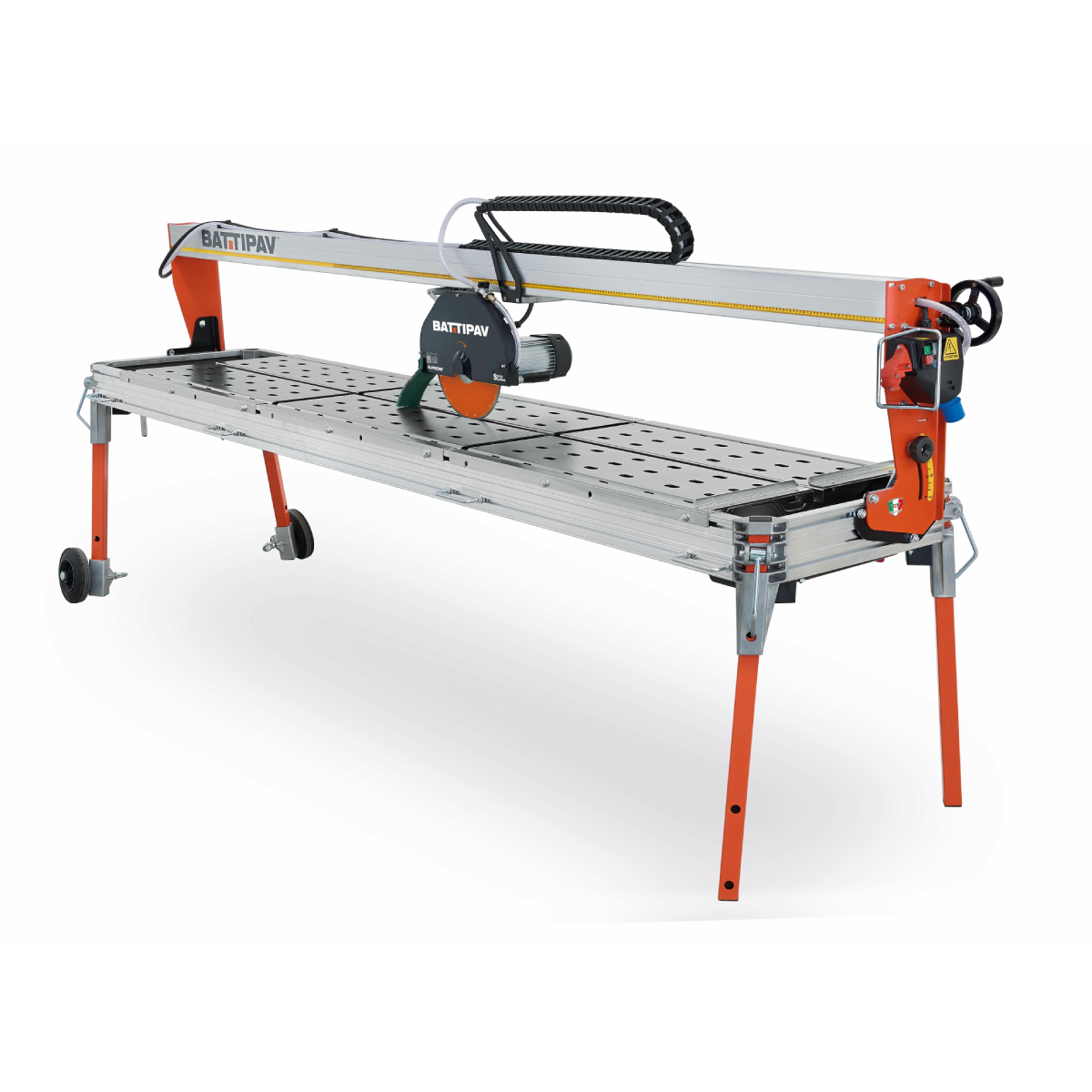

SUPREME is a bridge saw ideal for cutting natural stones, granite and marble slabs. It makes cuts moving forward manually the engine group.

TT Power
The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws.
AxT
(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality
Spray system
Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard.
Fast Leg
The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging.
W Dec
Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water.
Cable Chain
The cable chain system improves the ergonomics of the machine and its disk water cooling.
Tilting Head
Position for 45° angle cuts.
Carriage
The carriage motor group slides with 8 ball-bearings on interchangeable stainless steel track.

Accessories:

Included:
Wheels Kit
Cutting Progress System

Optional:
Laser Instrument
B-Lock for thickness up to 40 mm
Side bench with rollers
Extension side bench
Lifting belt
Additional legs for the frame
Side tile support
Long slot for side tile support
Swivel wheels

MODEL Supreme 150
Blade (Ø mm)* 300
Max. straight cutting length (mm) 1500
Max. cutting depth for straight cut (mm) 85
Max. size tile for diagonal cutting (mm) 1060 x 1060
Max. cutting depth with 2 runs (mm) 135
Max. cutting depth for 45° angle cut (mm) 60
Tool hole (Ø mm) 25.4
Rotation speed (rpm) 2800
Motor type 1 phase – 250V ~ 50HZ
3 phase – 400V ~ 50HZ
Motor power (HP / kW, A) 1 phase – 3.0 / 2.2, 9.0
1 phase – 4.5 / 3.5, 9.0
Water recycling pump type S3
Water tank capacity (Min. / Max.) (ltrs.) 31 / 49
Thermic protection (°C) 160
Amperometrical protection (A) 6 – 10

Download More Details
