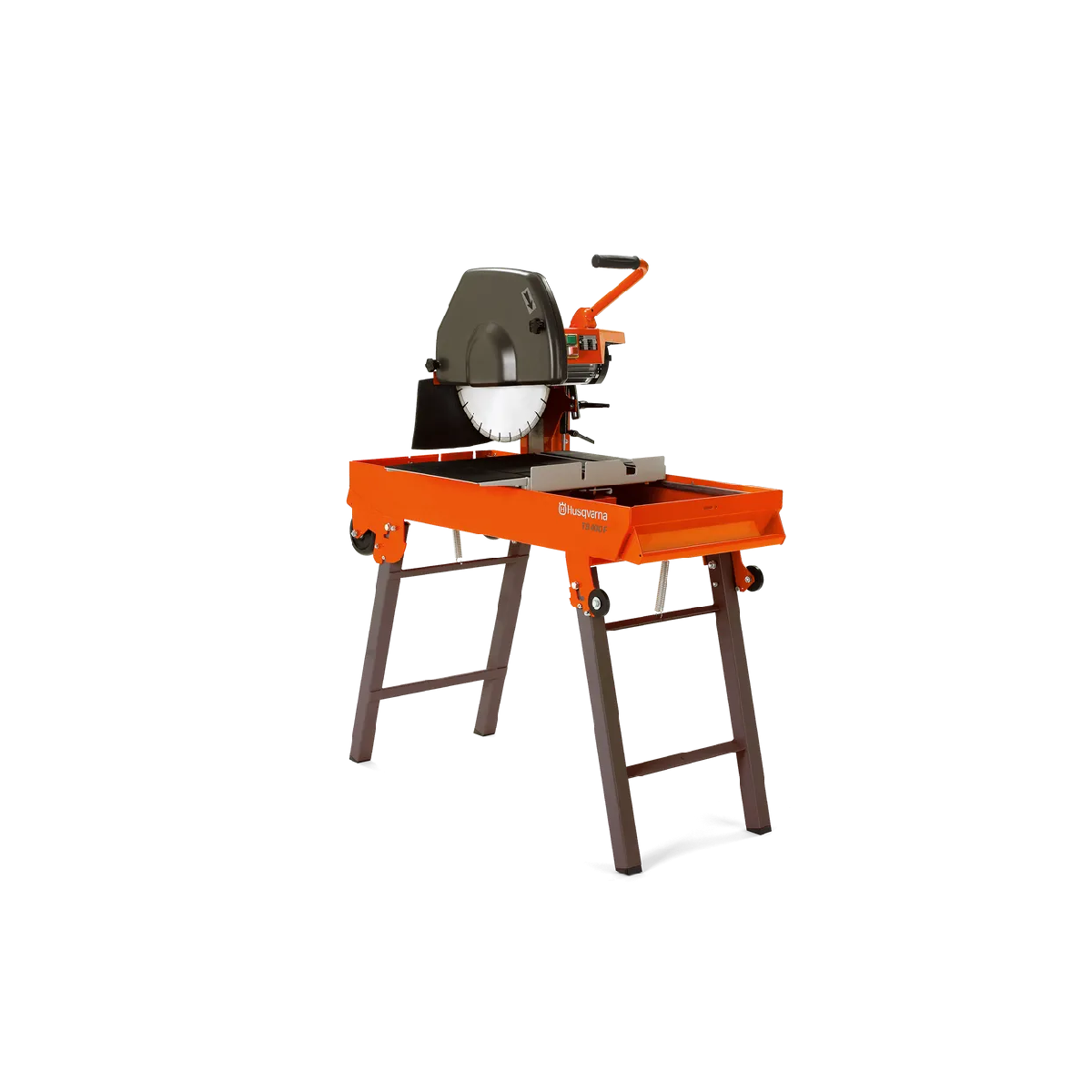

TS 400 F

In stock

TS 300 E is an efficient universal masonry saw with high cutting capacity for all kinds of bricks and building blocks. With this table saw you get a maximum cutting depth of 100 mm in one pass or up to 150 mm by step cutting. You can easily plunge or bevel cut at 45 degrees for maximum versatility. The robust single-piece frame with integrated conveyor rails gives great rigidity and provides longer product life.

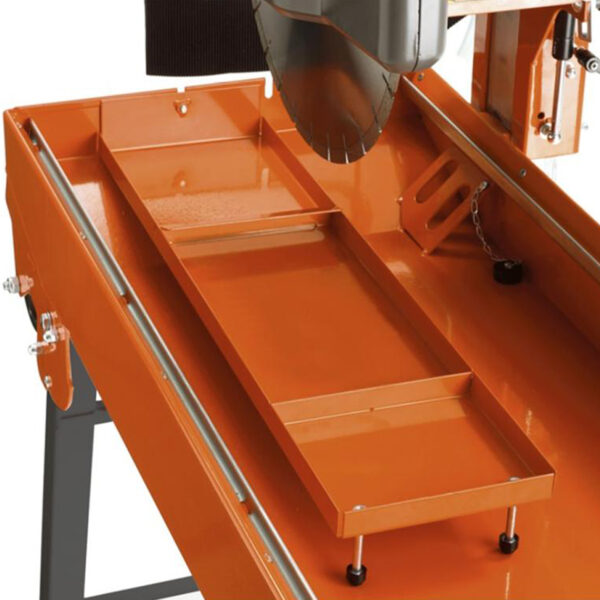

 Efficient slurry sedimentation
The collection tray enables efficient slurry handling for long pump life.
 Easy set-up
One person can set up the machine, thanks to the semi-automatic folding legs.
 Versatile
Can plunge and bevel cut at 45° or 90° for maximum versatility.
 Sturdy and reliable motor
Provides long product life.
 Easy transport and handling
Thanks to the four wheels.
 Heavy duty water pump
The high quality water pump greatly extends product life.
 Wide span of cutting depths
The precise height adjustment of the cutter head allows deep step cutting.
 Easy replacement of water pump
Thanks to the electrical quick connection.
 Protected guide rails
The solid frame protects the guide rails from external impact.

MODEL TS 400 F
Max. blade diameter (mm) 400 400 400
Max. depth of cut (mm) 125 125 125
Max. depth of with 2 runs cut (mm) 230 230 230
Max. length of cut (mm) 700 700 700
Arbor size (∅ mm) 25.4 25.4 25.4
Rotation speed (rpm) 2,800 2,800 2,800
Weight (kg) 96 96 96
Dimensions (mm) Length 1,120 1,120 1,120
Width 600 600 600
Height 600 600 600
ELECTRIC MOTOR Single Phase Single Phase Three Phase
Power (kW) 1.5 2.2 2.7
Voltage (V) 115 230 400
Frequency (Hz) 50 50 50

Recommended Equipment:

Kindly contact us for more information about the suitable blade for your application
