TS 60

In stock

TS 300 E is an efficient universal masonry saw with high cutting capacity for all kinds of bricks and building blocks. With this table saw you get a maximum cutting depth of 100 mm in one pass or up to 150 mm by step cutting. You can easily plunge or bevel cut at 45 degrees for maximum versatility. The robust single-piece frame with integrated conveyor rails gives great rigidity and provides longer product life.

 Clean work area
The Jet Stream Water Containment System keeps water and slurry in the cart trench, making it ideal for cutting indoors.
 Easy transport
The low weight, foldable legs and stable wheels facilitate transportation.

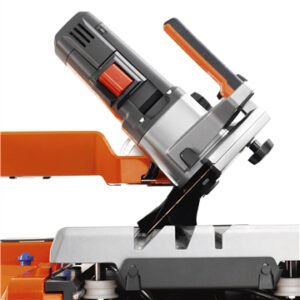

 Flexible cutting method
Switches between plunge cuts and MITRE cuts with ease.
 Ideal for long cutting
The maximum cutting length of 700 mm and the large cutting table allows you to cut 50×50 cm tiles diagonally.
 Jet Stream Water Containment System
Keeps water and slurry in the cart trench, making it ideal for cutting indoors.
 Adjustable cutting head
Enables bevel cuts between 22.5 and 45 degrees.
 Diverse sawing
You can do plunge, MITRE and angled cuts
 Easy to clean table
The large removable cutting table is easy to clean.
 No need to refill water
Thanks to the refined recycling system which cleans water for reuse.
 Overload protection
The ElgardTM overload protection system allows you to always cut at maximum speed, for best performance.
 Elgard™
LED indication for machine overload provides increased productivity and motor life.
 Easy angle cutting
Angle guide and adjustable stand are included to facilitate cutting.
 Electronic SoftStart™
Provides starting with normal, slow acting fuses.
 Smooth start with normal fuses
Softstart™ maintains high productivity even with normal fuses

MODEL TS 60
Max. blade diameter (mm) 250
Max. depth of cut (mm) 78
Max. cutting depth for 45° angle cut (mm) 45
Max. length of cut (mm) 726
Arbor size (∅ mm) 25.4
Weight (kg) 36
Dimensions (mm) Length 932
Width 700
Height 468
ELECTRIC MOTOR Single Phase
Power (kW) 0.8
Voltage (V) 230
Frequency (Hz) 50

Recommended Equipment:

Kindly contact us for more information about the suitable blade for your application
