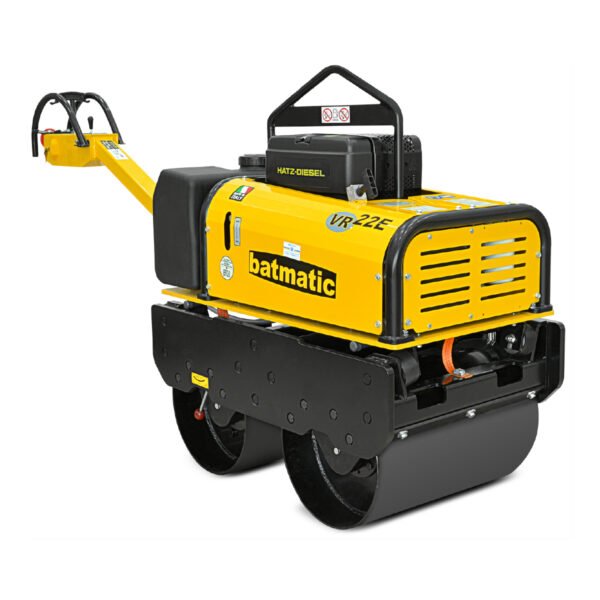

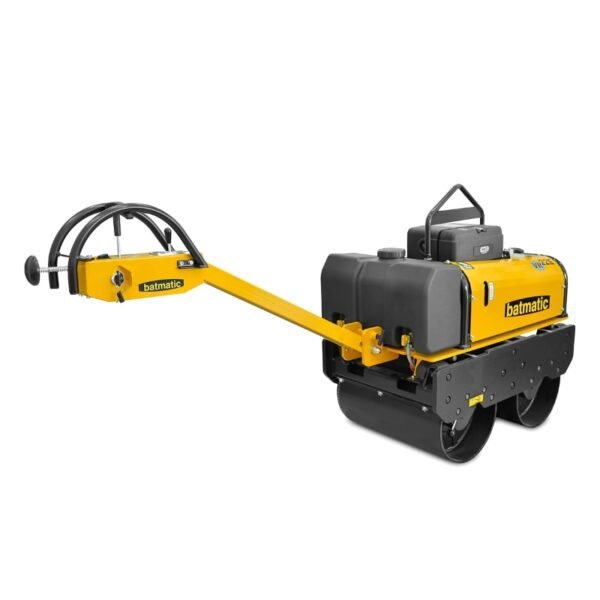

WALK-BEHIND DOUBLE DRUM VIBRATORY ROLLER
Manual Driven roller with double hydraulic traction; and vibration insertion activated by electromagnetic transmission and belts (VR22-E) & Controlled by hydraulic system (VR22-H).
Suitable for compacting asphalt or granular surfaces. The extremely compact frame allows the operator to work almost along the wall. Thanks to an efficient cooling radiator it has been possible to use few oil in the hydraulic circuit, allowing use in any climatic condition.
MODEL | VR22 E | VR22 H | |||
---|---|---|---|---|---|
Transmission | Hydraulic | Hydraulic | Hydraulic | ||
Vibration | Electromagnetic | Hydraulic | Hydraulic | ||
Weight (kg) | 716 | 725 | 753 | ||
Operating weight (kg) | 716 | 725 | 753 | ||
Travel Speed (km/h) | Forward | 4.8 | 4.8 | 4.8 | |
Reverse | 2.4 | 2.4 | 2.4 | ||
Max. gradable slope | 40% – 22° | 40% – 22° | 40% – 22° | ||
Angle of Lateral stability | 30% – 17° | 30% – 17° | 30% – 17° | ||
Oil tank capacity (L) | 3.5 | 4.0 | 4.0 | ||
Total oil in the circuit (L) | 6.5 | 7.0 | 7.0 | ||
Water tank capacity (L) | 45 | 45 | 45 | ||
LOW FREQUENCY | |||||
Centrifugal force (kN) | 14 | 14 | 14 | ||
Vibration frequency (Hz) | 48.3 | 48.3 | 48.3 | ||
Engine (rpm) | 2300 | 2300 | 2300 | ||
Vibrator (rpm) | 2900 | 2900 | 2900 | ||
HIGH FREQUENCY | |||||
Centrifugal force (kN) | 22 | 22 | 22 | ||
Vibration frequency (Hz) | 60 | 60 | 60 | ||
Engine (rpm) | 2800 | 2800 | 2800 | ||
Vibrator (rpm) | 3600 | 3600 | 3600 | ||
DIMENSIONS | |||||
Drum width (mm) | 650 | 650 | 650 | ||
Drum diameter (mm) | 400 | 400 | 400 | ||
Curb clearance (mm) | 240 | 240 | 240 | ||
ENGINE | Hatz | Hatz | Hatz | ||
Model | 1 B40 | 1 B40 | 1 D42 Z | ||
Fuel | Diesel | Diesel | Diesel | ||
Power (kW / HP) | 7.4 / 10.0 | 7.4 / 10.0 | 7.5 / 10.2 | ||
Starter | Electric | Electric | Electric |
