Load on the suspended platform should be reduced when it extent 1.5m or more Including hoist, safety lock, electric control box Not including wire rope & cable

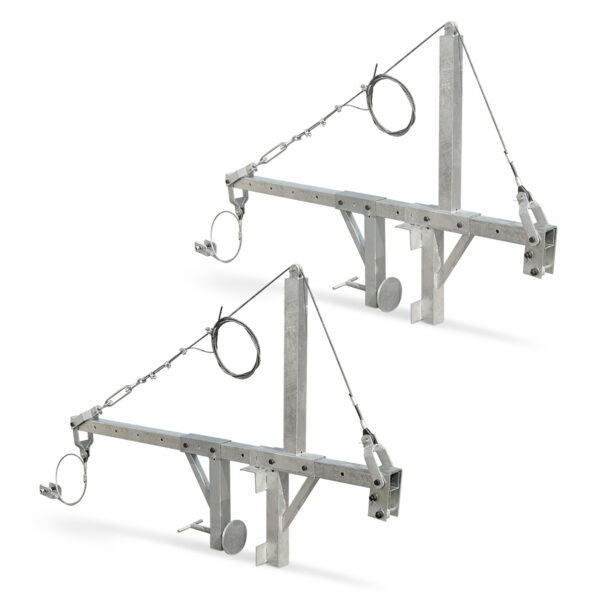

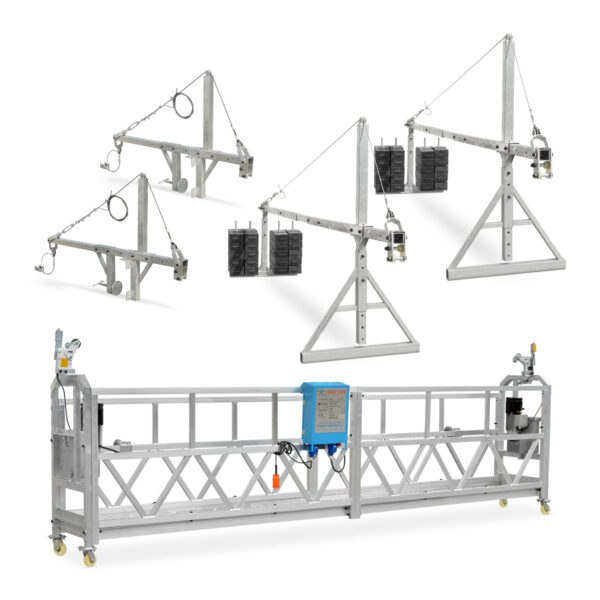

MODEL ZLP800 Rated load (kg) 800 Ascend speed (m/min) 8 ~ 10 Suspended platform size (L X W) (m) 1 ~ 7.5 X 0.69 Wire rope 4 X 31 SW + PP - 8.6 HOIST Model LTD 8.0 Rated lifting force (kN) 8.0 Electric Motor Power (kW) 1.8 Voltage (V) 400 Braking torque (N.m) 15 SAFTY LOCK Type LSG20 Steel rope angle adjusting range 3° ~ 8° Allowable compact force (kN) ≤ 20 Rope lock distance (m) ≤ 100 Diameter of steel rope (mm) 8.6 SUSPENSION MECHANISM Height adjustment (m) 1.15 ~ 1.75 Front beam (m) * 1.1 ~ 1.6 MACHINE WEIGHT Suspended platform (kg) ** 450 (Aliminum) Suspension mechanism (pcs. X kg) 2 X 175 Balance weight (kg) 1000 Whole machine weight (kg) *** 1830
